20T Green Sandwich Panel Roll Forming Machine Equipment 6m/min

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	Sandwoch panel

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	as request
Delivery Time:	40-60 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	15sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	3 Phase/380V/50Hz(For Confirmation )	Condition:	New
Weight:	20T	Warranty:	1 Year
Color:	Blue,green	After-sales Service Provided:	Video Technical Support
High Light:	20T Sandwich Panel Roll Forming Machine , Green Sandwich Panel Roll Forming Machine , 6m/min sandwich panel equipment

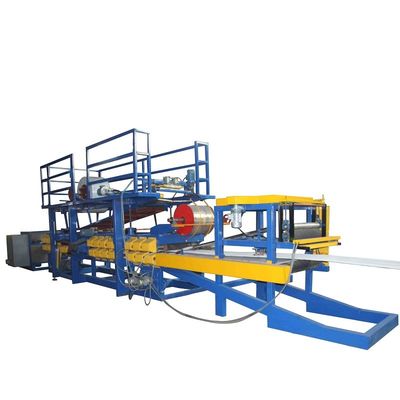

20T Sandwich Panel Roll Forming Machine Equipment 6m/min

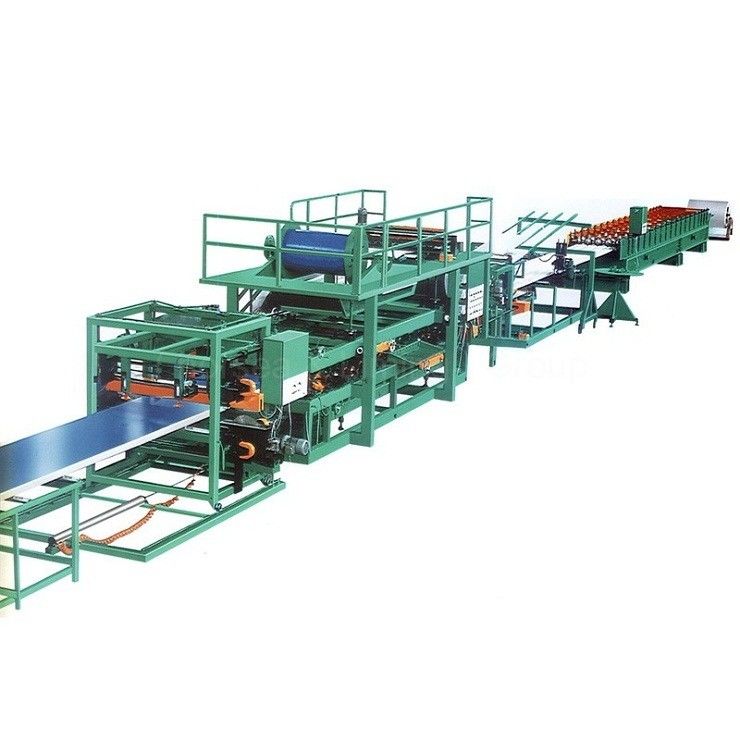

Simple introduction of Sandwich panel making machine:

This equipment is specialized in machining the metal steel insulation composite board,

including the gas, electric and machinery with advance technology. The Working speed

variable frequency step-less speed regulation, and it can composite the corrugated type

composite board. The whole working line contains the de-coiler, forming device, composite

device, it's the obbligato equipment for the roofing and wall panel of the working shop and

the storage.The motor of the whole line is 32kw, and the working length is 30meters. Also,

The forming speed is 4-6m/min, the thickness of the material steel is 0.28-0.8mm,and the

thickness of the product is 30-200mm.

Components and processing flow diagram:

Forming machine	a. No-powered uncoiler
	b. Into shearing device
	c. Forming machine itself
	d. Control Box
Panel machine	a. Leveler for thickness
	b. Glue section
	c. Apply Guard Film
	d. Grooving device
	e. Into shearing
