3.5T Round Pipe Roll Forming Machine 6m/min 18 Stands

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE,ISO
Model Number:	Downspout pipe

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for shipping
Delivery Time:	50 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Tile Type:	Steel	Voltage:	380V 50Hz 3phases
Condition:	New	Weight:	3.5T
Warranty:	One Year	Usage:	Rain Gutter
After-sales Service Provided:	Video Technical Support	Thickness:	0.3-0.7mm
Highlight:	3.5T Round Pipe Roll Forming Machine , 6m/min Round Pipe Roll Forming Machine , gutter metal roll forming machine

3.5T Round Pipe Roll Forming Machine 6m/min 18 Stands

Technical Parameter :

Suitable raw material	0.4mm,yield strength ≤ 250mpa
Main motor power	5Kw
Forming speed	6-10m/min
Number of roll stand	18 stands
Control system	PLC,length tolerance ≤ 3mm
Material of roll	45# steel, coated with chrome
Material of shaft	45# steel, 70mm
Cutting form	flying saw, cutting after forming

Main equipment:

inner tight decoiler

A. coil inner diameter:450mm--700mm

B. max width of coiling:1250mm

C. max weight of loading:5000kg

main forming machine

A. Shaft material:45# steel,bearing steel outer diameter 85mm

B. Main motor power:5.5kw

C. Forming speed:8--10m/min

D. Voltage:380v,50hz

E. Roller station:15

cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.no

control system

A. PLC: taida form Taiwan

B. Coder:from south korea

hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

Spare Parts:

1) Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2) Rubber mat 1 pcs;

3) Bolt spanner 1 pcs

Final products and drawing :

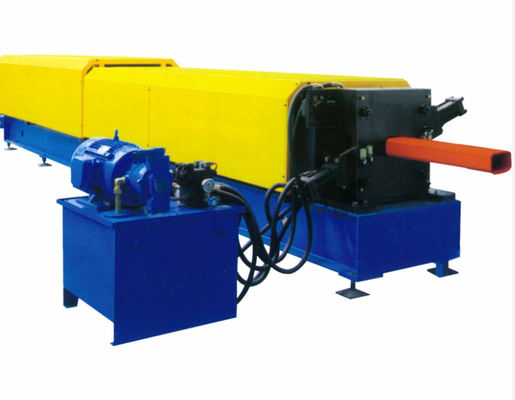

3.5T Round Pipe Roll Forming Machine 6m/min 18 Stands 0

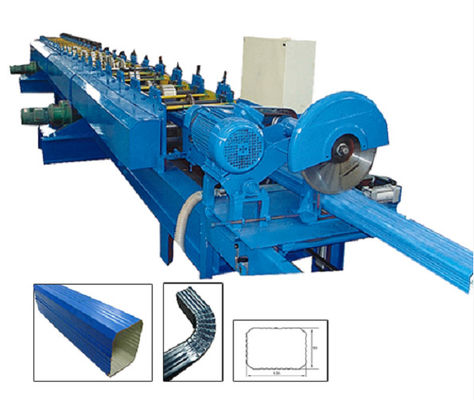

3.5T Round Pipe Roll Forming Machine 6m/min 18 Stands 1

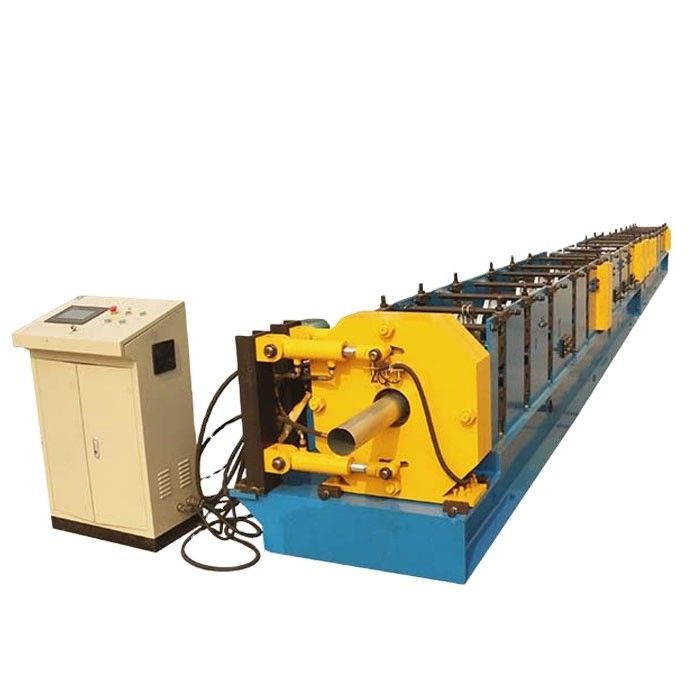

3.5T Round Pipe Roll Forming Machine 6m/min 18 Stands 2

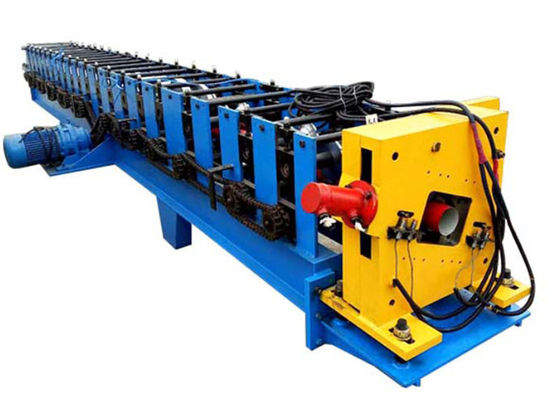

3.5T Round Pipe Roll Forming Machine 6m/min 18 Stands 3
