90m/min Carbon Steel Pipe Making Machine Cr12 101KW

90m/min Carbon Steel Pipe Making Machine Cr12 101KW

  • 90m/min Carbon Steel Pipe Making Machine Cr12 101KW
  • 90m/min Carbon Steel Pipe Making Machine Cr12 101KW
  • 90m/min Carbon Steel Pipe Making Machine Cr12 101KW
  • 90m/min Carbon Steel Pipe Making Machine Cr12 101KW
90m/min Carbon Steel Pipe Making Machine Cr12 101KW
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: Welded pipe
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 20sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V/220V Thickness: 1.0-3.0mm
Pipe Shape: Round Warranty: 12 Months
Pipe Diameter: Customized Condition: New
Raw Material: Carbon Steel After-sales Service Provided: Online Support
Highlight:

90m/min Carbon Steel Pipe Making Machine

,

101KW Carbon Steel Pipe Making Machine

,

Cr12 round pipe making machine

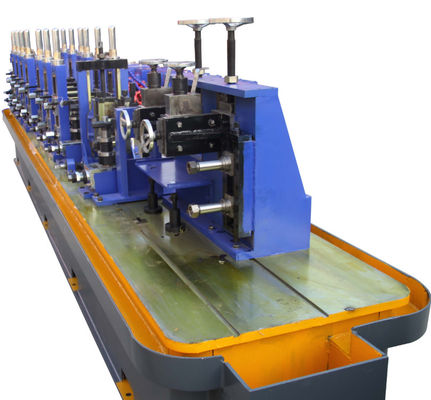

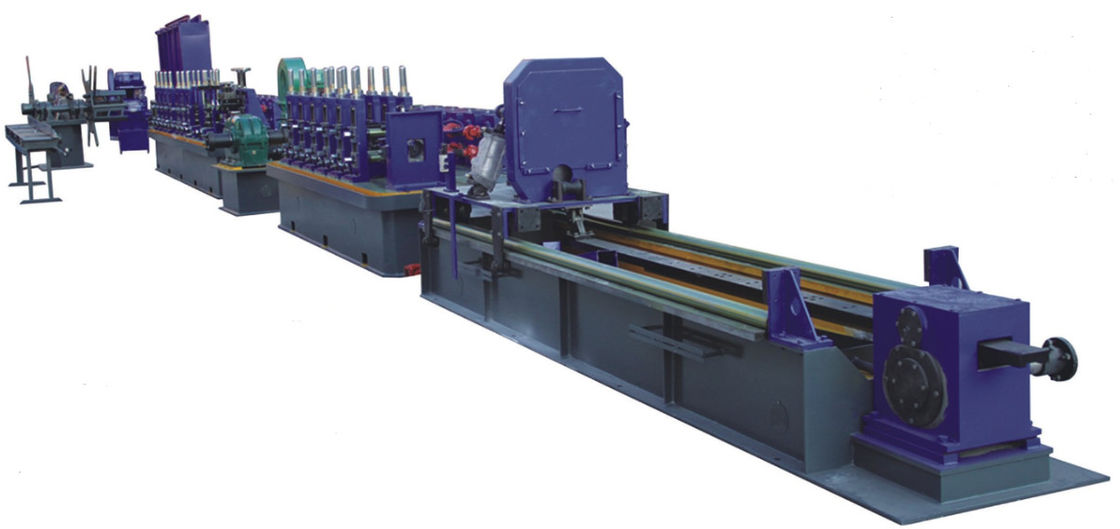

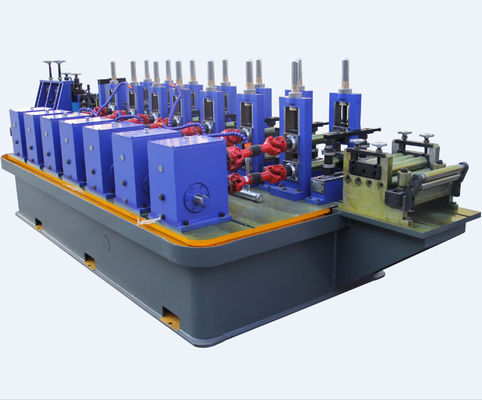

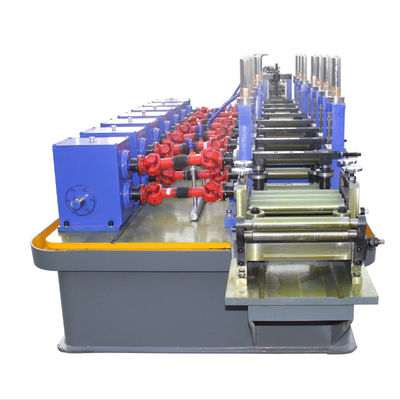

90m/min Carbon Steel Pipe Making Machine Cr12 101KW





Model number FX-32/50 Carbon Steel Pipe Making Machine
Rolled material aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
thickness

FX32:0.4-2.5mm

FX50:0.5-3.0mm

FX76:1.0-3.5mm

FX127:1.0-4.0mm
speed 0-90m/min
Forming steps 14 stations
Roller 45# forged steel, hard chrome plating within 0.05mm.
Diameter of shaft 70mm
Main motor power 101KW
High frequency power 100KW
Sprocket chain 1 inch
Drive type by chain
Cutting Blade Cr12, heat treatment 60-62°C
Frequency Converter It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component 1 set of manual decoiler,1 set of main roll forming machine with water cooling,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table

90m/min Carbon Steel Pipe Making Machine Cr12 101KW 0

90m/min Carbon Steel Pipe Making Machine Cr12 101KW 1







Tag:

CE Downspout Pipe Roll Forming Machine,

gutter metal roll forming machine,

6m/min Round Pipe Roll Forming Machine
