50L Automatic Filling Packing Machine 20bph Bottle Screw Capping Machine

50L Automatic Filling Packing Machine 20bph Bottle Screw Capping Machine

  • 50L Automatic Filling Packing Machine 20bph Bottle Screw Capping Machine
  • 50L Automatic Filling Packing Machine 20bph Bottle Screw Capping Machine
50L Automatic Filling Packing Machine 20bph Bottle Screw Capping Machine
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: fit for ocean shipping
Delivery Time: 20-40work days
Payment Terms: T/T, L/C
Supply Ability: 30sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Condition: New Warranty: 1 Year
Voltage: 380V 50Hz 3phases Pressure: 0.6-0.8Mpa
Color: Silver Control System: PLC
Highlight:

50L Automatic Filling Packing Machine

,

piston Automatic Filling Packing Machine

,

20bph Bottle Screw Capping Machine

50L Automatic Filling Packing Machine 20bph Bottle Screw Capping Machine



Machine characteristics
① The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and hygiene.
② This machine adopts German brand infrared sensor, and its position control is accurate.
③ This machine adopts imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation.
④ Equipped with height and width adjustment handwheels, it is convenient to adjust the height and left and right width of the labeling head to adapt to different products.
⑤ Adopt imported high-precision servo motor to drive labeling, labeling is accurate and stable.

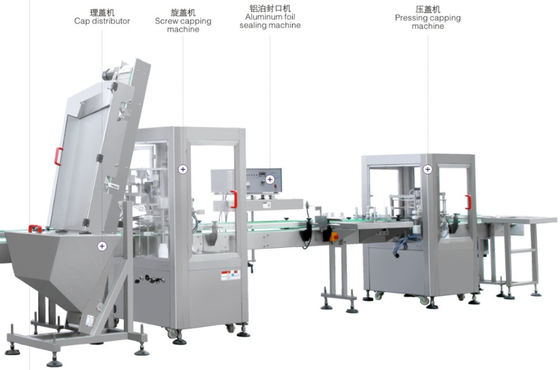

Capping machine

Lid feeding form Raise the belt style cover
Suitable specifications According to the model provided by the customer
Capping form Gripper cover to take the pneumatic screw cap(different specifications need to change the head and other accessories)
Speed 20bottle/min
Total power 500W
Air pressure 0.6-0.8Mpa
Voltage 220V Simplex

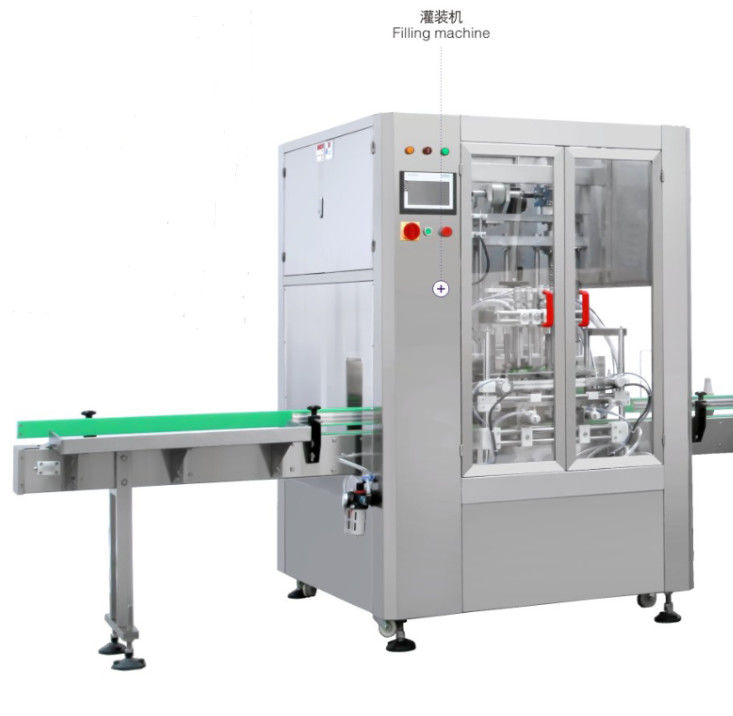

4 Piston filling machine

Filling heads 4 heads
Filling capacity 50-500ml
Filling form Servo piston type
Speed 25-30bottle/min(50-150ml)
Accuracy +-1%
Air pressure 0.6-0.8Mpa
Transport the motor 370W Variable frequency speed control motor
Power 2KW/380V 3 phase 5 line
Trough capacity 50L
Protective device Liquid storage tank will alarm if lack of liquid



50L Automatic Filling Packing Machine 20bph Bottle Screw Capping Machine 0



Tag:

Anticorrosive Filling Packing Machine,

2.2KW Double Sides Labeling Machinery,

8bph Double Sides Labeling Machinery
