Silver Plastic Bottle Labeling Machine Cap Sealer 20bpm

Product Details:

Place of Origin:	China
Brand Name:	Gracias

Payment & Shipping Terms:

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V/50HZ 3Phase	Condition:	New
Work Pressure:	0.6-0.8Mpa	Warranty:	1 Year
Control System:	PLC Touch/button Screen	Color:	Silver
Highlight:	Silver plastic bottle labeling machine , 20bpm plastic bottle labeling machine , 500W plastic bottle cap sealer

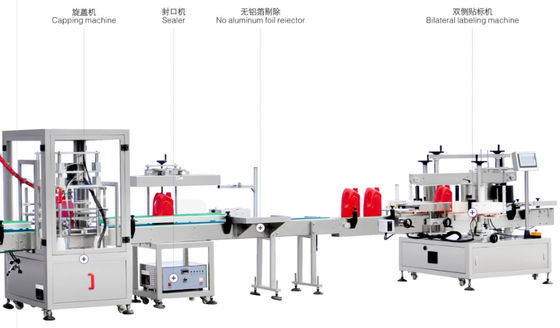

Silver Plastic Bottle Labeling Machine Cap Sealer 20bpm

Technical parameters of capping machine

Lid feeding form	Elevator
Suitable for specifications	According to the model provided by the customer
Capped form	Gripper take cap pneumatic screw cap(different specifications need to change the head and other accessories)
Speed	20 bottles/min
Material	The rack is made of stainless steel
Program control	Share with filling machine
Power	500W
Pressure	0.6-0.8MPa
Conveyor	Shared with filling machine
Voltage	220V single phase

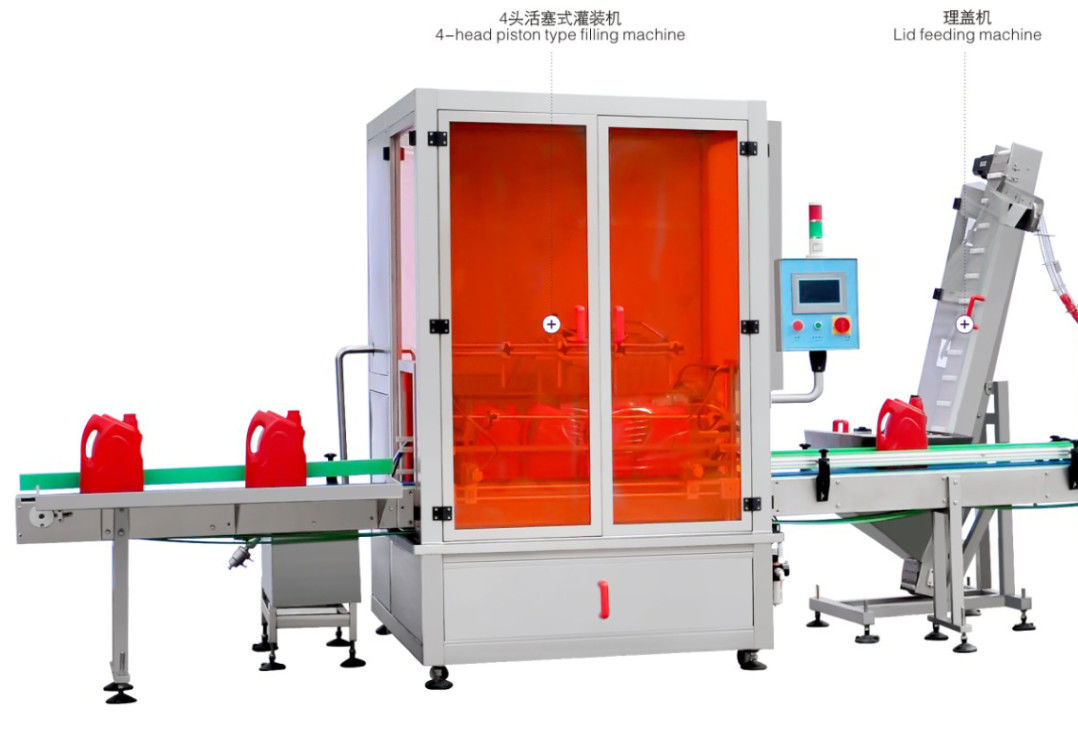

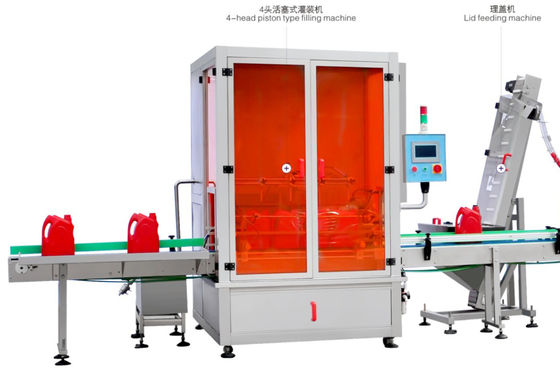

Technical parameters of filling machine

Filling heads	4 heads
Filling capacity	500-5000ml
Filling form	Servo piston filling
Speed	5-8 bottles/min(5L bottle)
Accuracy	+-1%
Material	Filling rack with stainless steel
Control system	PLC+Touch screen
Contact with liquid parts	304 SS,PVC
Pressure	0.6-0.8MPa
Conveyor	152mm chain with a height of 750 +- 25mm
Transport motor	370W frequency control motor
Power	2KW/380V 3 phase 5line
Trough capacity	50L
Protective device	Storage tank shutdown alarm
