Laser Printer Filling Packing Machine Two Dimensional

Product Details:

Place of Origin:	China
Brand Name:	Gracias

Payment & Shipping Terms:

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220/380V	Condition:	New
Warranty:	1 Year	Weight:	50KG
Usage:	Laser	After-sales Service Provided:	Online Support
Highlight:	220V Filling Packing Machine , 30W Filling Packing Machine , 2D laser printer machine

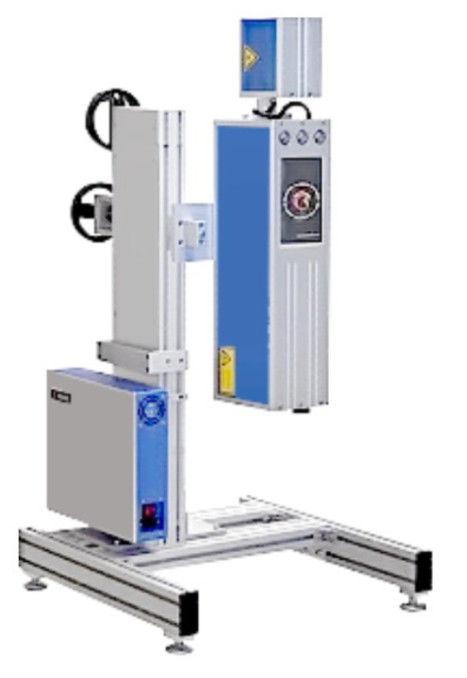

Laser Printer Filling Packing Machine Two Dimensional

Technical parameter

Model	300
Laser	Sealed metal radio frequency carbon dioxide laser generator
Continuous output power	≦30W
Galvanometer deflection	High-precision two-dimensional scanning system
The master	Highly integrated motherboard, 7-inch color touch LCD display
The cooling system	Air-cooled
Switching power supply	S600W-48V
Minimum line width	0.03mm
Repeat positioning accuracy	0.01mm
Marking the scope	56x56mm-300x300mm
Positioning way	Red light positioning, focus
Environmental requirements	temperature: 0-40C° humidity: 0-95%
Marking the groove type	Fractional Vector all-in-one
Marking engraved lines of characters	Any within the marking range
To adapt to the production line speed	0-189m/mim
Size of machine	710x138x183mm
