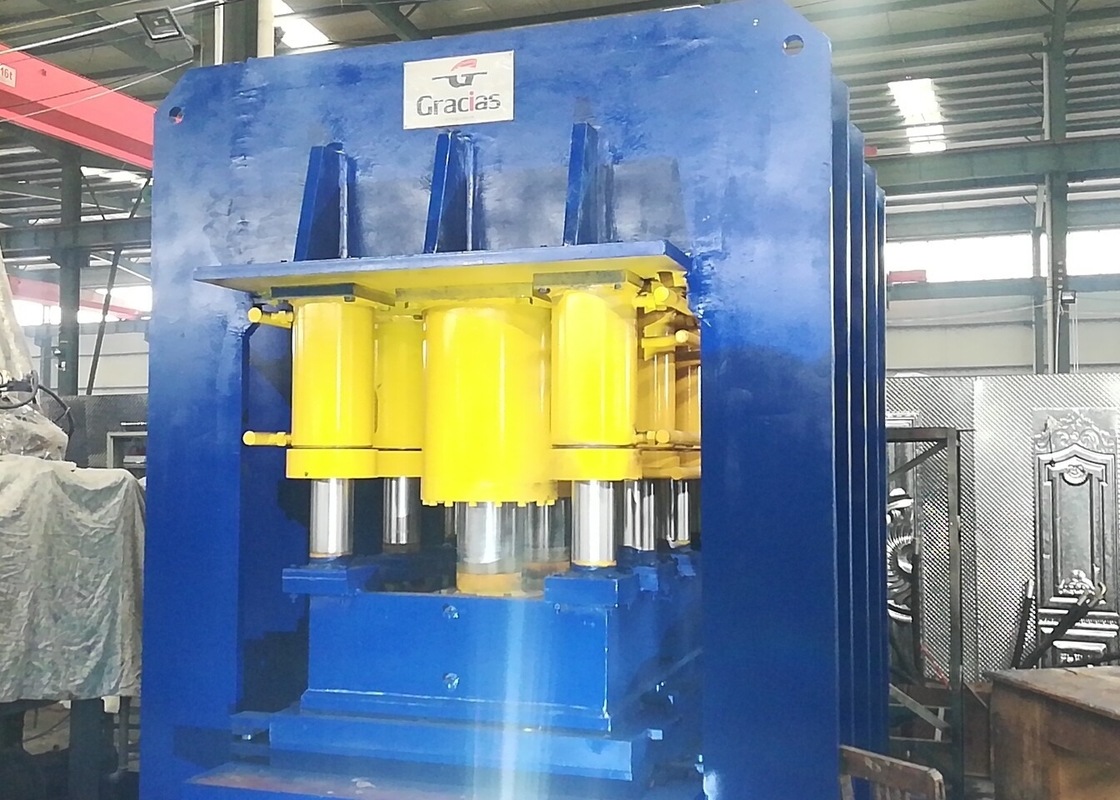

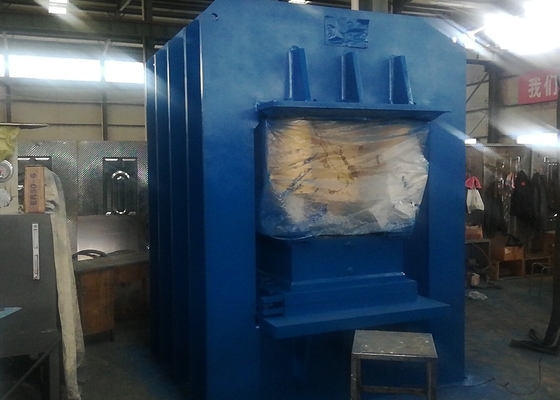

Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press

Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press

Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press
video
Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Wood case
Delivery Time: 40 working days
Payment Terms: T/T, L/C
Supply Ability: 20 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50HZ Condition: New
Warranty: One Year Function: Door Embossing
Power: 15 Kw-20KW After-sales Service Provided: Online Support,Video Technical Support
Highlight:

15kw Steel Door Embossing Machine

,

Hydraulic Press Door Embossing Machine

,

Centralized Steel Door Embossing Machine

15kw Steel Door Embossing Machine Hydraulic Press



Feature

Steel doors embossing machine can be customized according to customer demand for different tonnage

of different tonnage hydraulic machine. New products with latest designs:The new liquid-filled tank is

located in the middle of the upper beam of the hydraulic machine,with a higher safety factor and smoother

oil passage. Working pressure, pressing speed and stroke can be adjusted within the specified parameters

according to the process requirements. This machine has independent power mechanism and electrical

system,and adopts button centralized control, which can realize manual, semi-automatic and automatic

operation modes. It can realize two pressing methods: constant pressure and fixed stroke.





Parameter

Model Nominal pressure Thickness A B C H L Motor Remark
  T MM MM MM MM MM MM KW
LDY130M-1200 1200

0.3-0.6

 1500 2300 700 2600 2500 15 Aluminum doors
LDY130M-1500 1500 0.3-0.4 1500 2300 700 2600 2500 18.5 The stainless steel door is upgraded by one specification according to the thickness
LDY130M-1700 1700 0.3-0.8 1500 2300 700 2600 2500 18.5
LDY130M-2000 2000 0.3-1.0 1500 2300 700 2600 2500 22
LDY130M-2500 2500 0.3-2.0 1500 2300 700 2600 2500 22+15
LDY130M-3000 3000 0.6-2.75 1500 2300 700 2950 2500 22+15
LDY130M-5700 5700 1.0-2.75 2100 3000 900 3300 3500 22+15





Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press 0Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press 1



Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press 2Centralized 15kw 2500T Steel Door Embossing Machine Hydraulic Press 3
