PLC Combination Linear Scale Packaging Machine 50Hz 3Kw YH - 320

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	YH-320/420/520/620KT

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Standard export packaging
Delivery Time:	25-30 work days
Payment Terms:	TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability:	50 sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220V 50/60Hz	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Online Support, Video Technical Support
System:	PLC
High Light:	PLC Linear Scale Filling Packing Machine , 3Kw Linear Scale Filling Packing Machine , Linear Scale Packing Machine 50Hz

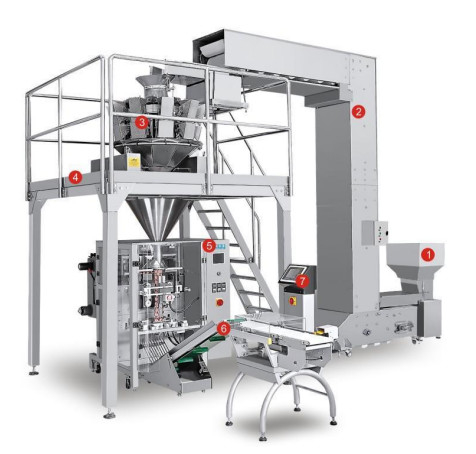

YH-320/420/520/620KT Combination Scale Packaging Machine

PLC Combination Linear Scale Packaging Machine 50Hz 3Kw YH - 320 0

PLC Combination Linear Scale Packaging Machine 50Hz 3Kw YH - 320 1

Applications:

Applicable to the automatic packaging of granular, flake,blockand other products with a diameter of not more than 6cm in thechemical, food, health care and pharmaceutical industries,such as: washing powder, plastic granules, sugar, salt, spiceseasoning, soybean,corn kernel, peanut , melon seeds, broadbeans, nuts, potato chips, Chinese herbal medicines, etc.

Parameter:

Model number	YH-320KT	YH-420KT	YH-520KT	YH-620KT
Filling range	5-200ml	10-1000ml	10-1500ml	100-3000ml
Sachet size	W:100-150mm L:100-200mm	W:150-200mm L:160-250mm	W:200-250mm L:210-300mm	W:200-300mm L:210-380mm
Max,film width	320mm	420mm	520mm	620mm
Sachet type	Back seal serrated/back seal gusset bag/back seal with bag /back seal punching bag
Filling method	Combination scale/linear scale
Capacity	20-50bag/min	20-50bag/min	20-45bag/min	20-45bag/min
Power	220V50-60HZ/3KW	220V50-60HZ/3.5KW	220V50-60HZ/4KW	220V50-60HZ/4.5KW
Dimension(LWH)	100011602800mm	125011603200mm	155011603500mm	165011603500mm
Weight	600KG	800KG	900KG	950KG
