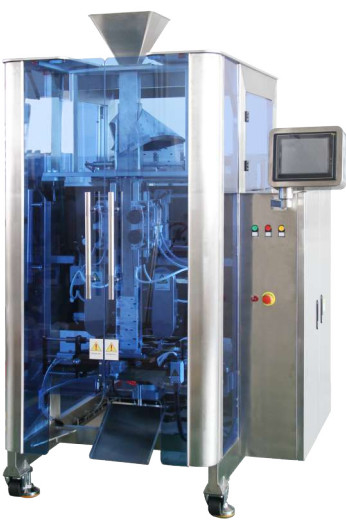

Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor

Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor

  • Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor
Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-T
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Using For Packing Material: Ss304
Product Type: Packing Machine Power: 5-6KW
Gas Pression: 0.6Mpa Gas Consumption: 0.3-0.7m³/min
High Light:

Quad Sealpacking Machine

,

50hz Quad Sealpacking Machine

,

Quad Sealpacking Machine 6kw





YH-T series quad sealpacking machine






Applications:






1.Applicable bag type : Seal type bag.

2.Applicable film materials : A variety of laminated films,single-layer PE film,Film thickness range 0.03mm~0.15mm.

3.Application packing materials:Granule, food & non-foods,such aspotato chips,candy,milk powder,frozen food,pet food,MSG,oatmeal,hardware,juice and souce,etc.






Freature:




1.Attractive standing bag style to satisfy the market demand.

2.lt completes bagging sealing,bottom flat automatically.

3.PLC pneumatic system for vertical and horizontal sealing.

4.Easy to operate,low maintenance.

5.Applicable bag type:the machine can make pillow-type,bag and standing bag according to customer's repuirements.







Parameter:





Model YH-HT5235 YH-ET5235
Film Width 220-520mm 220-520mm
Sealing width 5-10mm 5-10mm
Front surface width 60-190mm 60-190mm
Side surface width 40-110mm 40-110mm
Max film length 350mm 350mm
Packing speed 50bags/min 45bags/min
Film pulling driven servo motor servo motor
Horizontal driven servo motor cylinder
Voltage 6Kw/220V/50(60)Hz 5Kw/220V/50(60)Hz
Gas Pression 0.6Mpa 0.6Mpa
Gas Consumption 0.3m³/min 0.7m³/min
Machine Dimension 1820*1255*1954mm 1820*1255*1954mm
Machine Weight 700kg 680kg





Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor 0Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor 1


Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor 2
