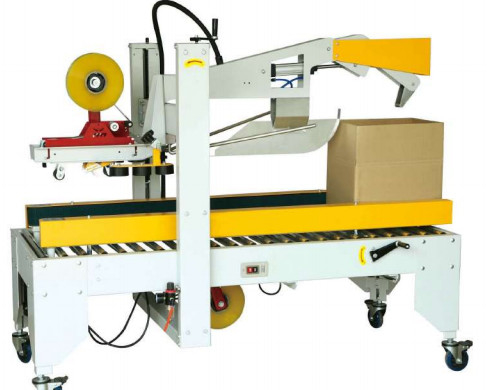

YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz

YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz

  • YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz
YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-CF
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 500 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 2Kw/220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Carton Shaping And Sealing Machine Material: Ss304
Product Type: Sealing Machine Conveying Speed: 0-20m/min
Origin: China Air Pressure: 6kg/cm²
Machine Weight: 250KG
High Light:

400w Automatic Folding Sealing Machine

,

YH-CF Cover Folding Sealing Machine

,

Folding Sealing 380V Machine



YH-CF Automatic Cover Folding And Sealing Machine




Freature:





1.The machine is manufactured using international advanced technologies.Parts, electric elements,and pneumatic elements are imported.

2.Width and height can be manually adjusted according to carton specifications.

3.The top cover of the carton is automatically folded and the top and bottom covers of the carton are automatically stuck with tapes in a quick, smooth and good looking way.

4.The machine is installed with a blade protection device to avoid stabbing during operation.

5.The machine can be operated independently or work with an automatic packaging line.







Parameter:





Model YH-CF
Max.Carton Size L*W*H=600*500*500mm
Min.Carton Size L*W"H=200*150*150mm
Conveying Speed 0-20m/min
Applicable Tape Size 48mm,60mm, 75mm
Power Requirement 400w,220/380V , 50/60Hz
Air Pressure 6kg/cm²
Machine Size 1770*850*1520mm
Machine Weight 250KG

 YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz 0

YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz 1YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz 2YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz 3YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz 4YH-CF Automatic Cover Folding And Sealing Machine 400w 380V 50 / 60Hz 5

Tag:

Anticorrosive Filling Packing Machine,

2.2KW Double Sides Labeling Machinery,

8bph Double Sides Labeling Machinery
