6 Head Double Sides Labeling Machinery SS304 Automatic Screw Capping Machine

Product Details:

Place of Origin:	China
Brand Name:	Gracias

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	As discussion
Packaging Details:	Standard export package
Delivery Time:	30-50 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	20sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220/380V	Condition:	New
Weight:	About 3.5T	Warranty:	12 Months
Work Pressure:	0.6-0.8Mpa	Control System:	PLC Touch/button Screen
High Light:	8bph Double Sides Labeling Machinery , 2.2KW Double Sides Labeling Machinery , SS304 Automatic Screw Capping Machine

6 Head Double Sides Labeling Machinery SS304 Automatic Screw Capping Machine

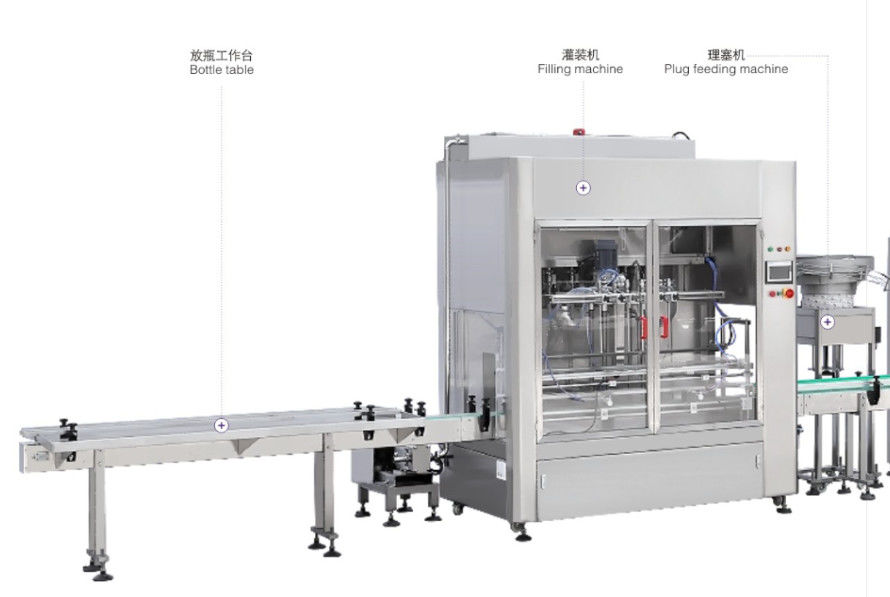

Technical parameters of 6 heads filling machine

6-head automatic self-flow filling screw type capping and double sides labeling machinery

Filling heads	6 heads
Filling capacity	0.5-5L
Filling form	Multiple nozzle into bottle bottom fast and slow filling
Speed	6-8bottles/min(4L bottle)
Accuracy	+-1%
Pressure	0.6-0.8Mpa
Transport motor	750W frequency control motor
Power	2.2Kw/380V 3phase 5line
Main tank capacity	200L(with level switch,inlet tube inserted into the bottom,trough cover to prevent foam overflow)

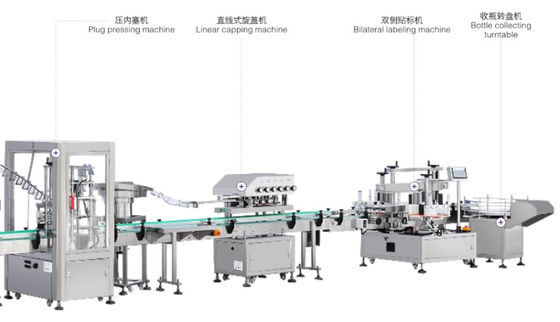

Technical parameters of linear capping machine

Lid putting form	Put the lid manually(bottle with nozzle need to put by hand and make sure the direction is the same)
Suitable for specifications	According to the model provided by the customer
Capped form	8 rounds of rubbing screw cap
Speed	20-30bottles/min
Material	The rack is made of 304SS
Program control	PLC+Touch screen
Total power	200W
Pressure	0.6-0.8Mpa
Conveyor	Shared with filling machine
