Anticorrosive Filling Packing Machine 1500bph Round Bottle Labeling Machine

Product Details:

Place of Origin:	China
Brand Name:	Gracias

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	As discussion
Packaging Details:	Standard export package
Delivery Time:	45 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	20sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Volatge:	220/380V	Condition:	New
Material:	304SS	Warranty:	One Year
PLC:	Simens	Pressure:	0.6-0.8Mpa
High Light:	Anticorrosive Filling Packing Machine , 6 heads Filling Packing Machine , 1500bph Round Bottle Labeling Machine

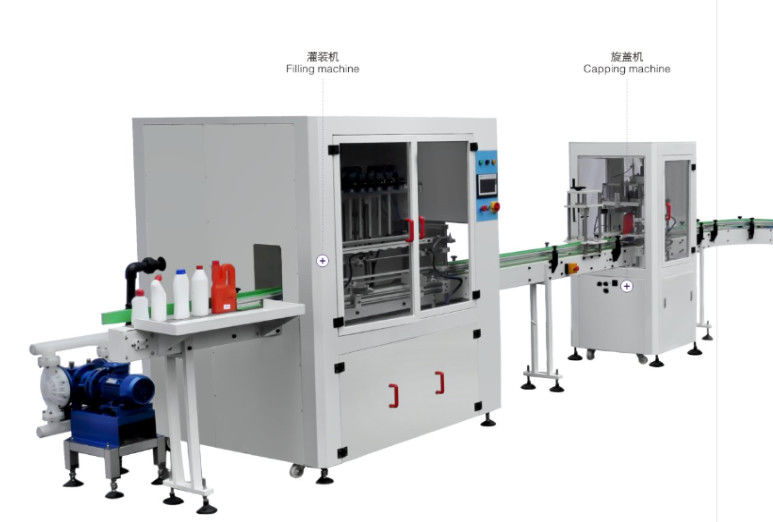

Anticorrosive Filling Packing Machine 1500bph Round Bottle Labeling Machine

Number of filling heads	6 heads
Filling volume	100-1000ml
Filling type	Servo-driven piston quantitative filling
Filling speed	750 bottles/hour(1000ml)
Filling accuracy	+-1%
Program control	PLC + touch screen
Material	rack,conveyor belt side panel appearance PTFE material,part of the exposed parts using acid and alkali plastic material,filling the mouth and trough and other contact with the liquid parts of stainless steel and PTFE,PVC,PP material
Air pressure	0.6-0.8MPa
Conveyor belt	82mm POM chain belt,speed 0-15m/min,ground height 980mm +- 25mm
Transmission motor	750W frequncy control motor
Power	about 2.2kW / 380V three-phase five-wire
Trough capacity	150L
Conveyor belt entrance with single side of the table	800mm x 300mm (L x W)

Capping machine

Lid feeding form	manual put cover
Suitable specifications	according to the customer to providethe model (11 kinds of bottles and lid)
Screw cap form	electric folder spin
Speed	750 bottles / hour (1000ml)
Material	Corrosion resistant material
Program control	share with filling machine
Machine power	400w
Air pressure	0.6-0.8MPa
Conveyor belt	shared with filling machine

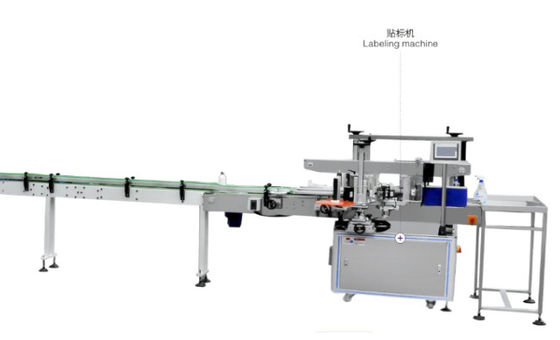

Double sides round bottle labeling machine (including coding machine)

Applicable labeling location: side bottle single and double paste, round bottle stickers

Applicable label range: according to the customer to providesamples (non-transparent label)

Error range: = 1mm (except for the error of the bottle itself)

Voltage: 220V /50-60V/Hz

Air pressure: 0.6-0.8Mpa

Conveyor belt: 114mm POM chain belt,speed 0-30 m/mintune, from the ground height 980mm± 25mm

Program control: import PLC touch screen man-machineinterface

Applicable paper roll: diameter 76mm, diameter up to 300mm

Speed: 1500 bottles / hour

Anticorrosive Filling Packing Machine 1500bph Round Bottle Labeling Machine 0

Anticorrosive Filling Packing Machine 1500bph Round Bottle Labeling Machine 1

Tag:

Anticorrosive Filling Packing Machine,

2.2KW Double Sides Labeling Machinery,

8bph Double Sides Labeling Machinery
