Vertical 20bpm Round Bottle Label Applicator Machine

Vertical 20bpm Round Bottle Label Applicator Machine

  • Vertical 20bpm Round Bottle Label Applicator Machine
  • Vertical 20bpm Round Bottle Label Applicator Machine
Vertical 20bpm Round Bottle Label Applicator Machine
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: fit for ocean shipping
Delivery Time: 20-40work days
Payment Terms: T/T, L/C
Supply Ability: 30sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Condition: New Weight: 600kg
Voltage: 380V/50HZ 3Phase Warranty: 1 Year
Usage: Labeling After-sales Service Provided: Online Support
High Light:

Vertical Round Bottle Label Applicator

,

20bpm Round Bottle Label Applicator

,

SS Automatic Sticker Labeling Machine

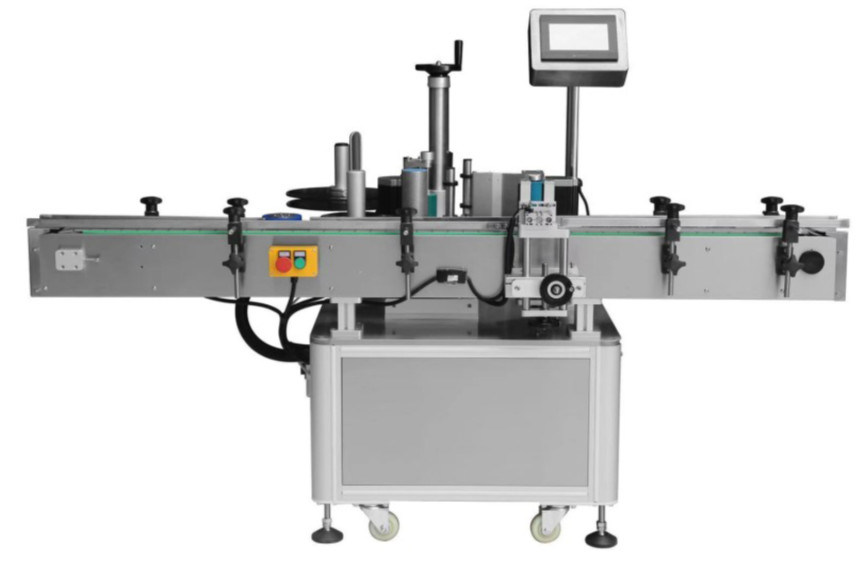

Vertical 20bpm Round Bottle Label Applicator Machine



Machine features

Machine using corrosion-resistant stainless steel, easycleaning and disinfection, in line with the relevant national food machinery, food hygiene regulations and requirements. This machine adopts Germany brand infrared sensor, accurate control of bottle positioning location. Adopt imported PLC and 7 inch touch screen interface, production parameters of control, simple operation. Equipped with height adjustment hand wheel, easy to adjust the height of the labeling head to accommodate different product labeling position. Easy to adjust the distance of the positioning axis spacing to accommodate different diameter products.





Parameter

Apply the bottle diameter 20-80mm round bottle
Apply label range L/10-250mm,H/20-100mm
Labeling speed 20-40 bottles/min(depends on size of product and label)
Accuracy +-0.5mm(Height direction)
For paper roll diameter 76mm
Largest paper roll diameter 280mm
Voltage 220V/50Hz
The engine power 600W
Pressure 0.5-0.8Mpa
Dimension 1710x1034x1300mm(L x W x H)
Control system PLC+Touch screen
