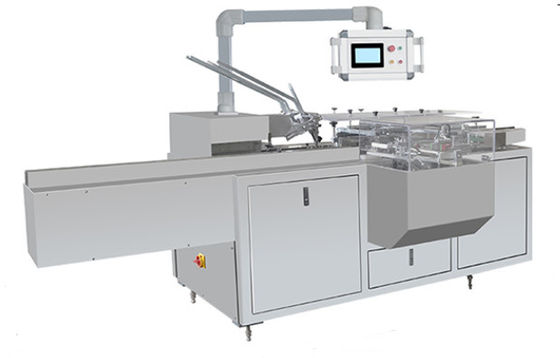

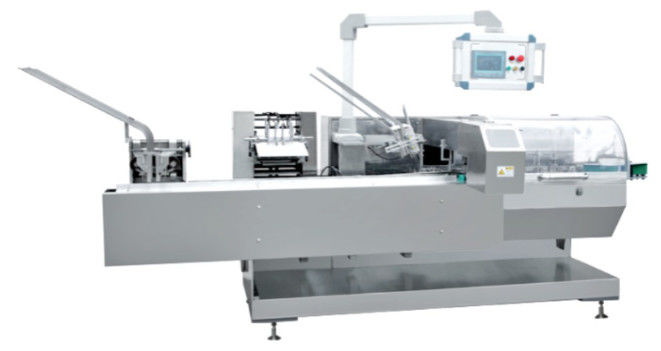

90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel

90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel

  • 90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel
  • 90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel
90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 30 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Weight: About 1.5t Warranty: 1 Year
Control System: PLC After-sales Service Provided: Online Support
High Light:

90box/min Semi Automatic Cartoning Machine

,

1.5KW Semi Automatic Cartoning Machine

,

ss cartoner packaging machine

90box/min Semi Automatic Cartoning Machine 1.5KW Stainless steel



Technical parameter

Cartoning spedd 40-90box/min
Paper requirements 250-400g/m2
Pressure >0.6Mpa
Air consumption 20m3/h
Voltage 220/380V 50Hz
Main motor power 1.5KW
Dimension 3500x1300x1600mm
Weight 1300KG





List of main components

PLC DVP12SC11T
PLC expansion module DVP16SP11R
Encoder E6B2
Touch screen DOP-B05
Frequency converter DVP01521A
Light eyes E3Z-D61
Motor CH-1500-10S 1.5KW
Indexing box 0S83-4L-180
Button XB2
Emergency stop ZB2 BC4D
Intermediate relay LY2M 24V
AC contactor GML-12
Close the switch LJ12A3-4-Z1BX
Shell Stainless steel
