Intelligent Metal Detecting Food Processing Machinery Automatic Debugging

Intelligent Metal Detecting Food Processing Machinery Automatic Debugging

  • Intelligent Metal Detecting Food Processing Machinery Automatic Debugging
Intelligent Metal Detecting Food Processing Machinery Automatic Debugging
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-818
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Wood case
Delivery Time: 8-15 working days
Payment Terms: T/T, L/C
Supply Ability: 80 sets per month
Contact Now
Detailed Product Description
Voltage: 220V Condition: New
Warranty: 1 Year Control System: PLC
Weight: 250kg After-sales Service Provided: Online Support
High Light:

Conveying 24m/Min Food Processing Machinery

,

304SS Food Metal Detector

,

Automatic Debugging Food Metal Detector

Intelligent Food Metal Detector Automatic Debugging



Applicable industry:

Detection of metal foreign bodies in various textiles, plastic products, toys, aquatic products, food (food additives, condiments), medicines, health products, cosmetics and other industries, such as metal particles such as iron, copper, aluminum, stainless steel, etc. Can detect bulk, bag, bottle, box.



Characteristics:

1. The core part is carefully developed with advanced digital technology and original imported chips.

The inside of the detection coil is molded at one time by potting.

It has the characteristics of high detection accuracy, stable performance, and strong anti-interference ability.



2. It can be produced with multiple frequencies according to product characteristics, and has a product testing data storage function, which can store about 100 product testing data with a wide range of applications.



3. Using intelligent recognition technology, with self-learning and memory functions, it can automatically recognize and remember product characteristics, and effectively eliminate the interference caused by various "product effects".



Parameters:

Detection height 12cm,15cm,20cm(Can be customized)
Detection width 40cm(Can be customized)
Conveyor length 140cm(Can be customized)
Conveyor belt height from ground 70cm
Maximum load 15kg
Material 304SS
Sensitivity

FE φ 0.8-1.5mm, CUφ 1.5-2.5mm, SUSφ 2.0-3.0mm

Alarm mode

Buzzer, LED sound and light alarm, and automatic shutdown.

Conveying speed 24m/min
Dimension(L x W x H mm) 1400 x 850 x 1005
Weight 250kg

Remarks: Export models, suitable for wet and dry products, suitable for products with high product effects such as moisture, sugar, salt, etc., automatic learning, automatic debugging, automatic phase balance function, effectively suppressing product effects, suitable for high sensitivity requirements and requirements Strict use

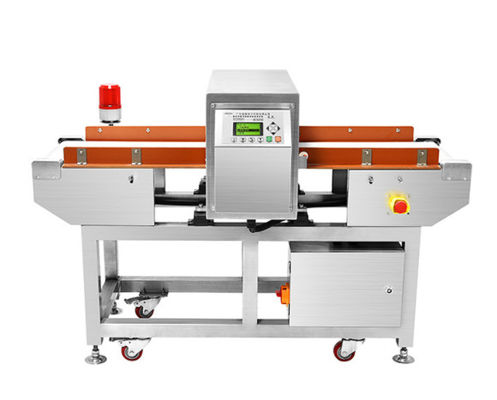

Intelligent Metal Detecting Food Processing Machinery Automatic Debugging 0

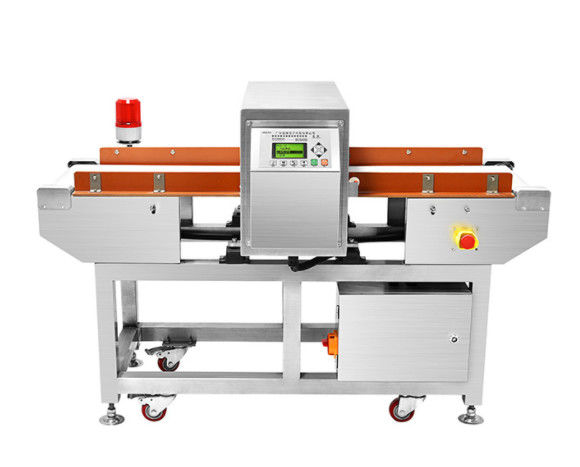

Intelligent Metal Detecting Food Processing Machinery Automatic Debugging 1
