Wall Column Extrusion Partition Making Machine 2.5m/Min 4kw

Wall Column Extrusion Machine

Product Introduction
Various places such as highway fences, urban rail transit fences, both sides of villages and towns,

and around farmyards all need to be enclosed by wall columns, and the quality and modeling requirements

of the wall columns are also improving. In the past, walls built with bricks and concrete through the human

body had relatively high material costs and labor costs, and required relatively high manual skills. It was

difficult to ensure the consistency of the shape, the overall strength was relatively low, and the service

life was short. To solve this problem, the company designed and developed a fence post machine/wall cap machine.

The machine has reasonable design, high degree of automation, convenient operation, high production

efficiency, low production cost, low skill requirements for workers, consistent product shape, high overall

strength, and long service life. The length of the plate can be cut at will according to customer requirements.

Working principle

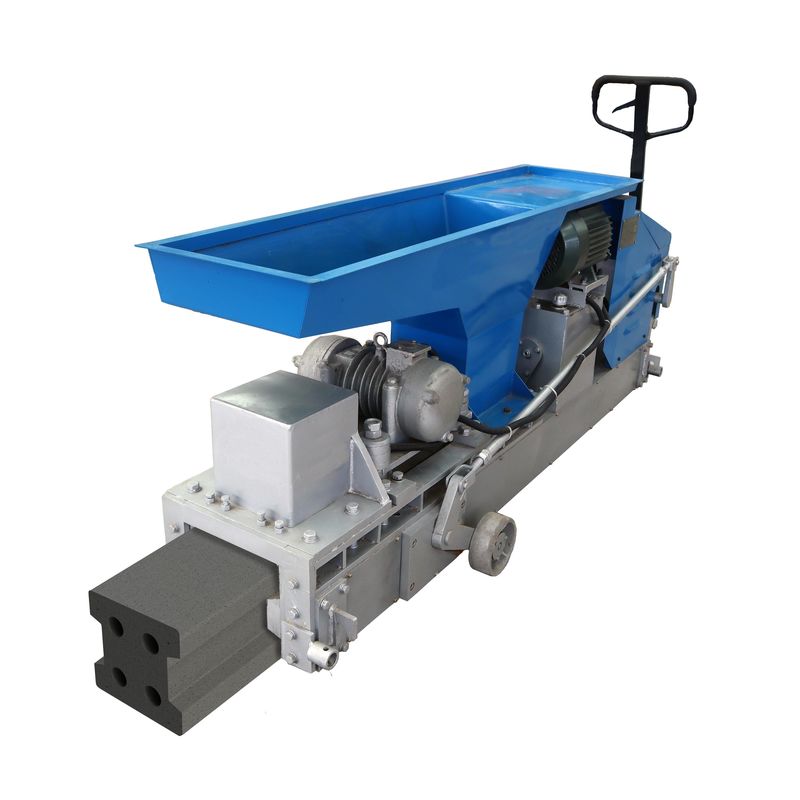

This machine integrates the multi-processes of cloth, vibration, forming and demoulding produced by

lightweight partition board: the main motor transmits the power to the reduction box through the pulley,

and the output shaft of the reduction box drives the spiral stirring knife in the frame (wall Plate), vibrator

and pedestal constitute the forming cavity to rotate; the light mixture from the hopper is continuously

conveyed to the forming cavity, and the light mixture is squeezed by the spiral stirring knife in the forming

cavity and the vibrator is continuous Under the dual action of vibrating, it produces resonance and is

continuously squeezed and compacted, and reaches the required shape, size and compactness. At the

same time, the vibrated and compacted strip produces a reaction force against the rotating stirring knife,

pushing the extruder continuously Advance to achieve continuous plate making.

Parameters

Main characteristic

This machine has reasonable design, high degree of automation, convenient operation, high production

efficiency, low skill requirements for workers, consistent product shape, high overall strength, and long

service life. The product length can be cut at will according to customer requirements. Integral wall caps

and columns made of concrete and other materials can prevent rainwater from entering the wall panel,

prolong the service life of the wall panel, and beautify the decoration. At the same time, its construction

and installation are convenient and fast, saving labor costs, and shortening Within the construction period,

it has a very broad market prospect.
