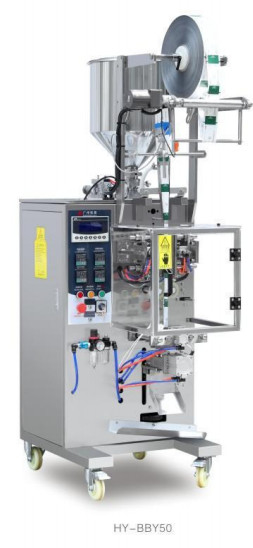

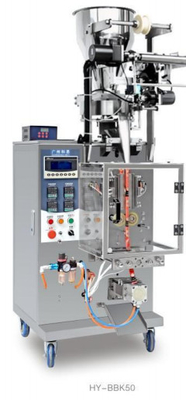

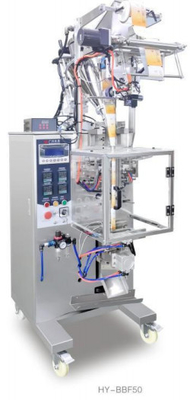

60hz 3.0kw Granular Packaging Machine Liquid / Powder With Step Motor

Liquid/Powder/Granular Packaging With Step Motor









Applications:




Freature:




1.Adopt German Siemens PLC controller,color touch screen operation;Taiwan AIRTAC cylinder; France Schneider switching power supply.

2.Full pneumatic control, simple operation,less wear parts in the later stage.reducing parts replacement

3.Material:The contact part of the box and material is made of SUS304 stainlesssteel, which meets GMP production standards.

4.The heat-generating parts and moving parts are hidden in the protective cover,which is safe and reliable.

5.The equipment is equipped with casters for easy handling and movement.

Mechanical characteristics and product characteristics:

1.Long strip design, the capacity can be large or small,by setting the bag length value, can achieve different weight. reduce mold replacement.

2.Rounded shaped sachet, can design the size of the nozzle, tear horizontally to prevent the material from spilling: the are corner can also prevent children fromscratching Eye corners,increasing product safety.

3.Increase the vibration device to prevent the dust accumulation molding device from falling into the material feeding portL, affecting the filling accuracy of themachine: at the same time,seal the material feeding hole through the foodgrade silica gel sheet to reduce the dust.

4.Punching die adopts SKH-9 material,after six processing techniques, highdurability and long service life.

5.The equipment is easy to operate,and one ordinary female worker can see 3sets of equipment.



Parameter:
