Back Sealing Granule Packaging Machine Stainless Steel 1.0kw / Yh-QBK50 / BK50

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	YH-QBK50/BK50

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Standard export packaging
Delivery Time:	25-30 work days
Payment Terms:	TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability:	50 sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220V 50/60Hz	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Online Support, Video Technical Support
System:	PLC
High Light:	Back Sealing Granule Packaging Machine , 1.0kw Back Sealing Packing Machine , BK50 Back Sealing Packing Machine

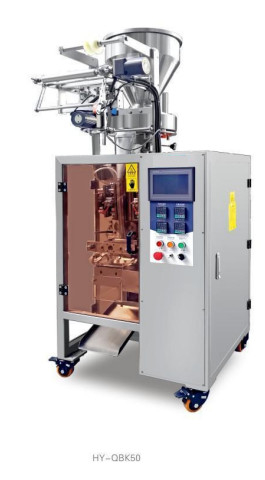

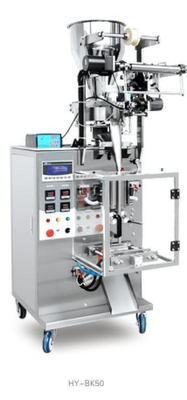

YH-QBK50/BK50 Back Sealing Granule Packaging Machine

Back Sealing Granule Packaging Machine Stainless Steel 1.0kw / Yh-QBK50 / BK50 0

Mechanical characteristics and product characteristics:

1. The equipment is easy to operate and easy to maintain.

2. The whole bracket is made of all stainless steel, non-outsourced stainless steel.

3. The equipment is compatible, and different specifications can be realized by changing the mold.

Parameter:

Modelnumber	YH-QBK50	YH-K50
Filling range	1-50ml	1-50ml
Sachet size	W:30-100mm L:30-150mm	W:30-100mm L:30-150mm
Max.film width	220mm	220mm
Sachet type	Stick
Control	SIEMENS PLC + TOUCH SCREEEN	EASY PACK CONTROL
Filling method	Volumetric cups	Volumetric cups
Capacity	30-50 bags/min PPM	30-50 bags/min PPM
Power voltage and consumption	220V50-60HZ/1.0KW	220V50-60HZ/1.0KW
Air pressure and consumption	0.3m³/min 0.6-0.8Mpa	0.3m³/min 0.6-0.8Mpa
Dimension(LWH)	8807001850mm	6708501755mm
Weight	250KG	200KG
