220V 50Hz Granular Packaging Machine 3Kw 4 Sides Yh-K488 Liquid Powder

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	YH-K488/Y488/F488

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Standard export packaging
Delivery Time:	25-30 work days
Payment Terms:	TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability:	50 sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220V 50/60Hz	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Online Support, Video Technical Support
System:	PLC
High Light:	Liquid Powder Granular Packaging Machine , 4Sides Granular Packing Machine , 3Kw 220V Granular Packing Machine

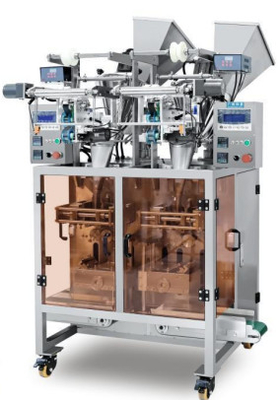

YH-K488/Y488/F488 Liquid/Powder/Granular Packaging Machine

220V 50Hz Granular Packaging Machine 3Kw 4 Sides Yh-K488 Liquid Powder 0

Applications

lt is suitable for automatic packaging of granules, liquid pastes and powder products in cosmetics.food, health care and pharmaceutical industries. The two machines are packaged in parallel, which is suitable for customers with small sites, large production capacity and little investment in the early stage.

Features

1.Two-machine parallel design, large capacity.

2.Customized side seals, back seals,one out two or one out four series according to customer requirements.

3.Material: The contact part of the box and material ismade of sUS304 stainless steel, which is in line with GMP production.

4.The heat-generating parts and moving parts arehidden in the protective cover, which is safe andreliable.

5.The equipment is equipped with casters for easyhandling and movement.

Parameter:

Model number	YH-K488	YH-Y488	YH-F488
Filling range	1-50ml	1-50ml	1-50ml
Rows	1by2,1by4	1by2,1by4	1by2,1by4
Sachet size	W:30-100mm L:30-170mm	W:30-100mm L:30-170mm	W:30-100mm L:30-170mm
Max.film width	220mm	220mm	220mm
Sachet type	3 sides/4 sides/stick
Filling method	volumetric cups	Piston pump,magnetic pump	Auger screw
Capacity	40-160bags/min PPM	40-150bags/min PPM	40-150bags/min PPM
Power voltage and consumption	220V50-60HZ/3KW	220V50-60HZ/3KW	220V50-60HZ/3KW
Air	0.3m³/min 0.6-0.8Mpa	0.3m³/min 0.6-0.8Mpa	0.3m³/min 0.6-0.8Mpa
Dimension(LWH)	12407631655mm	12407631655mm	12407631655mm
Weight	450KG	450KG	450KG

220V 50Hz Granular Packaging Machine 3Kw 4 Sides Yh-K488 Liquid Powder 3
