Name: Pillow Bag Weighing And Packing Machine Seal Type Bag 65bags / Min Series 2 In 1
Brand: Gracias
SKU: YH-MC
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (179 reviews)

WENZHOU YIHENG MACHINERY CO.,LTD

English

Home

Products

About Us

Factory Tour

Quality Control

Home Products Filling Packing Machine

Pillow Bag Weighing And Packing Machine Seal Type Bag 65bags / Min Series 2 In 1

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	YH-MC

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Standard export packaging
Delivery Time:	25-30 work days
Payment Terms:	TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability:	300 sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220V 50Hz	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Online Support, Video Technical Support
Film Pulling Driven System:	Servo Motor	Use:	Using For Packing
Material:	Ss304	Product Type:	Packing Machine
Volume:	300-1600ml	Gas Pression:	0.6Mpa
Gas Consumption:	0.4-0.6m³/min
High Light:	Weighing And packing Machine , 65bags/Min Weighing And packing Machine , 0.6Mpa Weighing And packing Machine

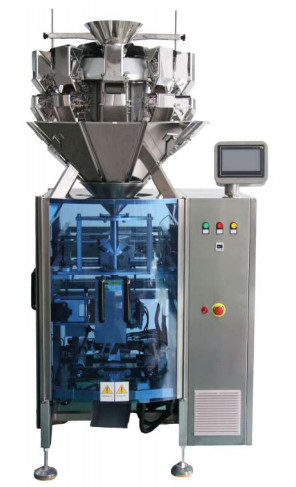

YH-MC series weighing andpacking 2 in 1 machine

Applications:

Applicable bag type: Pillow bag,Gusset bag,Seal type bag.
Applicable film materials:A variety of laminated films,single-layerPE film,Film thickness range 0.04mm~0.15mm.
Applicable packing materials:A variety of recreation food,frozenfood,coffee beans,oatmeal,granulated sugar,salt,rice,pet food,small hardware etc.

Freature:

PLC control,man-machine interface,easy to operate andmaintaince.
Equiped with double servo motor and optical tracking devices to keep accuracy and high speed.
Automatic multihead weighing and vertical packaging combinein one unit(2 in 1 technology).

Parameter:

Model	YH-MC361003	YH-MC361005	YH-MC361016
Weigher Heads	10 heads	10 heads	10 heads
Max single dump cap(g)	3-50g	3-200g	10-2000g
Weighing accuracy	±0.1-0.5g	±0.1-1.0g	±0.1-1.5g
Maximum weighing speed	60WPM	65WPM	70WPM
Volume	300ml	500ml	1600ml
Film Width	140-360ml	140-360ml	160-460ml
Bag size	*LW=(60-250)mm(50-170)mm*	*LW=(60-250)mm(50-170)mm*	*LW=(60-300)mm(60-220)mm*
Maximum packing speed	65bags/min	65bags/min	60bags/min
Film pulling driven system	servo motor	servo motor	servo motor
Horizontal sealing driven system	cylider	cylider	cylider
Voltage	3.8KW/220V/50(60)Hz	3.8KW/220V/50(60)Hz	4.6/220V/50(60)Hz
Gas pression	0.6Mpa	0.6Mpa	0.6Mpa
Gas consumption	0.4m³/min	0.4m³/min	0.6m³/min
Machine dimension	*LWH=130610592002mm*	*LWH=130610592002mm*	*LWH=164511402509mm*
Machine weight	530kg	550kg	750kg
