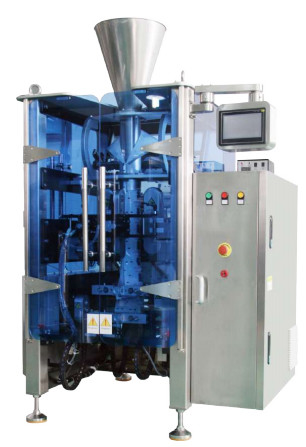

Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor

Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor

  • Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor
Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-G
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Film Pulling Driven System: Servo Motor Use: Using For Packing
Material: Ss304 Product Type: Packing Machine
Power: 6.9KW Gas Pression: 0.6Mpa
Gas Consumption: 0.2m³/min
High Light:

Highspeed Vertical Packing Machine

,

6.9 KW Vertical Packing Machine

,

Vertical Packing Machine 0.6Mpa



YH-G series three servo motor highspeed vertical packing machine






Applications:






1.Applicable bag type: Pillow bag, Gusset bag,Seal typebag.

2.Applicable film material: a variety of laminated films,single-layer PE film. Thickness range 0.04mm~0.15mm.

3.Applicable packing material: a variety of recreation food,frozen food, coffee beans, oatmeal, granulated sugar,rice, pet food, small hardware etc.






Freature:




1.Two sets horizontal heat sealed bars, higher packing speed higher daily production.

2.Equiped with three servo motors for film pulling driven

system, vertical and horizontal sealing driven system.

3.The frame of machine is made of #304 stainless steel,equiped with auto-stop protection funtion when openthe door.




Parameter:





Model YH-G4230
Film Width 160 ~ 420mm
Bag Size L*W=(60 ~ 300mm)"(60 ~200)mm
Maximum Packing speed 150bags/min
Film Pulling Driven System servo motor
Vertical Sealing Driven System servo motor
Horizontal Sealing Driven System servo motor
Voltage 6.9KW/220V/50(60)Hz
Gas Pression 0.6MPa
Gas Consumption 0.2m³/min
Machine Dimension L*W*H=1375mm*1213mm*1482mm
Machine Weight 800Kg




Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor 0Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor 1Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor 2


 Highspeed Vertical Packing Machine Higher Speed Yh-G Series Three Servo Motor 3
