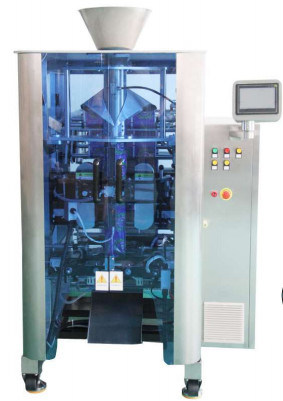

Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304

Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304

  • Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304
Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-H
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Using For Packing Material: Ss304
Product Type: Packing Machine Power: 3-5.5KW
Gas Pression: 0.6Mpa Gas Consumption: 0.15-0.4m³/min
High Light:

Double Servo Motor Vertical Packing Machine

,

ss304 Vertical Packing Machine

,

Vertical Packing Machine 5.5KW





YH-H series Double servo motor vertical packing machine






Applications:






1.Applicable bag type: Pillow bag, Gusset bag,Seal typebag.

2.Applicable film material: a variety of laminated films,single-layer PE film. Thickness range 0.04mm~0.15mm.

3.Applicable packing material: a variety of recreation food,frozen food, coffee beans, oatmeal, granulated sugar,rice, pet food, small hardware etc.






Freature:




1.PLC control,man-machine interface,easy to operate andmaintaince.

2.Driven by double servo motor and optical tracking devices to keep high packing speed and high accuracy.

3.The frame of machine is made of #304 stainless steel,equipedwith auto-stop protection function when open the door.




Parameter:



Model YH-H3220 YH-H4230 YH-H5235
Film Width 140-320mm 160-420mm 180-520mm
Bag Size L*W=(60 ~ 200mm)"(50 ~150)mm L*W=(60 ~ 300mm)"(60 ~200)mm L*W=(60 ~ 350mm)"(70 ~250)mm
Maximum Packing speed 100bags/min 100bags/min 90bags/min
Voltage 2.9KW/220V/50(60)Hz 4.5KW/220V/50(60)Hz 4.5KW/220V/50(60)Hz
Gas Pression 0.6MPa 0.6MPa 0.6MPa
Gas Consumption 0.15m³/min 0.2m³/min 0.2m³/min
Machine Dimension L*W*H=1158mm*930mm*1213mm L*W*H=1400mm*1100mm*1560mm L*W*H=1514mm*1154mm*1590mm
Machine Weight 350Kg 500Kg 550Kg





Model YH-H6240 YH-H7245
Film Width 180-520mm 200-720mm
Bag Size L*W=(70-400mm)"(80-300)mm L*W=(70-450mm)"(80-350)mm
Maximum Packing speed 85bags/min 70bags/min
Voltage 5.1KW/220V/50(60)Hz 5.5KW/220V/50(60)Hz
Gas Pression 0.6MPa 0.6MPa
Gas Consumption 0.2m³/min 0.4m³/min
Machine Dimension L*W*H=1640mm*1226mm*1709mm L*W*H=1748mm*1344mm*1955mm
Machine Weight 600Kg 680Kg


Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304 0Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304 1



Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304 2


 Double Servo Motor Vertical Packing Machine High Packing Speed 5.5KW Ss304 3
