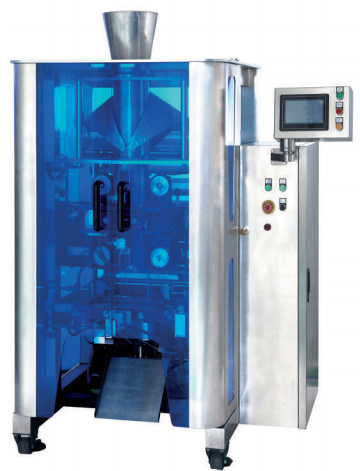

60bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function

60bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function

  • 60bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function
60bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-M
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Using For Packing Material: Ss304
Product Type: Packing Machine Power: 3.4KW
Gas Pression: 0.6Mpa Gas Consumption: 0.6m³/min
High Light:

60bags/Min Vertical Packing Machine

,

3.4kw Vertical Packing Machine

,

Vertical Packing Machine 60Hz





YH-M series vertical packing machine






Applications:






1.Applicable bag type: Pillow bag, Gusset bag,Seal typebag.

2.Applicable film material: a variety of laminated films,single-layer PE film. Thickness range 0.04mm~0.15mm.

3.Applicable packing material: a variety of recreation food,frozen food, coffee beans, oatmeal, granulated sugar,rice, pet food, small hardware etc.






Freature:




1.PLC control,man-machine interface,easy to operate andmaintaince.

2.Driven by double servo motor and optical tracking devices to keep high packing speed and high accuracy.

3.The frame of machine is made of #304 stainless steel,equipedwith auto-stop protection function when open the door.





All packing machines Optional devices

  • Gusset device
  • Punching device
  • Exhaust/inflatable devices
  • PE film sealing
  • Anti-Static electricity
  • Horizontal seal cooling
  • Nitrogen Charging device
  • Vibrating device
  • Sealing device
  • Easy tear device
  • Bag support device
  • Evacuating device
  • Film rectify deviation adjust device
  • Horizontal sealing servo motor



Parameter:





Model YH-M4230 YH-M5235
Film Width 160 ~ 420mm 180 ~520mm
Bag Size L*W=(60 ~ 300)mm*(60 ~ 200)mm L*W=(60 ~ 350)mm*(70 ~250)mm
Maximum Packing speed 60bags/min 60bags/min
Voltage 3.4KW/220V/50(60)Hz 3.4KW/220V/50(60)Hz
Gas Pression 0.6Mpa 0.6Mbra
Gas Consumption 0.6m³/min 0.6m³/min
Machine Dimension L*W*H=1400mm*1100mm*1560mm L*W*H=1514mm*1154mm*1620mm
Machine Weight 480Kg 520Kg



60bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function 060bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function 160bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function 260bags / Min Vertical Packing Machine 3.4kw 220v 60Hz Auto Stop Protection Function 3
