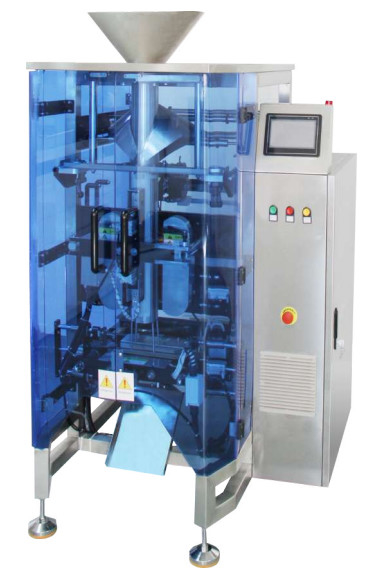

Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series

Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series

  • Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series
Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-E
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Using For Packing Material: Ss304
Product Type: Packing Machine Power: 2.15-5.5KW
Gas Pression: 0.6Mpa Gas Consumption: 0.4-0.8m³/min
High Light:

Pe Film Vertical Packing Machine

,

0.6mpa Vertical Packing Machine

,

Vertical Packing Machine 5.5kw





YH-E series Economic vertical packing machine






Applications:






1.Applicable bag type: Pillow bag, Gusset bag,Seal typebag.

2.Applicable film material: a variety of laminated films,single-layer PE film. Thickness range 0.04mm~0.15mm.

3.Applicable packing material: a variety of recreation food,frozen food, coffee beans, oatmeal, granulated sugar,rice, pet food, small hardware etc.






Freature:




1.PLC control,man-machine interface,easy to operate andmaintaince.

2.Driven by double servo motor and optical tracking devices to keep high packing speed and high accuracy.

3.The frame of machine is made of #304 stainless steel,equipedwith auto-stop protection function when open the door.







Parameter:







Model YH-E3220 YH-E4230 YH-E5235
Film Width 140-320mm 160 ~420mm 180-520mm
Bag Size L*W=(60 ~ 200)mm*(50-150)mm L*W=(60 ~ 300)mm*(60 ~200mm L*W=(60 ~ 350)mm*(70 ~250mm
Maximum Packing speed 70bags/min 65bags/min 60bags/min
Voltage 2.15KW/220V/50(60)Hz 3.4KW/220V/50(60)Hz 3.4KW/220V/50(60)Hz
Gas Pression 0.6Mpa 0.6Mpa 0.6Mpa
Gas Consumption 0.5m³/min 0.6m³/min 0.7m³/min
Machine Dimension L*W*H=1158mm*930mm*1213mm L*W*H=1455mm*1040mm*1470mm L*W*H=1540mm*1160mm*1600mm
Machine Weight 350Kg 400Kg 450Kg
Model YH-E6240 YH-E7245
Film Width 160 ~620mm 200 ~720mm
Bag Size L*W=(70 ~ 400)mm*(80 ~300mm L*W=(70~ 450)mm*(80-350)mm
Maximum Packing speed 50bags/min 0-70bags/min
Voltage 3.6KW/220V/50(60)Hz 5.5KW/220V/50(60)Hz
Gas Pression 0.6Mpa 0.6Mpa
Gas Consumption 0.8m³/min 0.4m³/min
Machine Dimension L*W*H=1640mm*1226mm*1709mm L*W*H=1748mm*1344mm*1965mm
Machine Weight 550Kg 630Kg

Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series 0Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series 1
Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series 2Single Layer Economic Vertical Packing Machine Pe Film 0.6mpa 2.15 - 5.5kw YH-E Series 3
