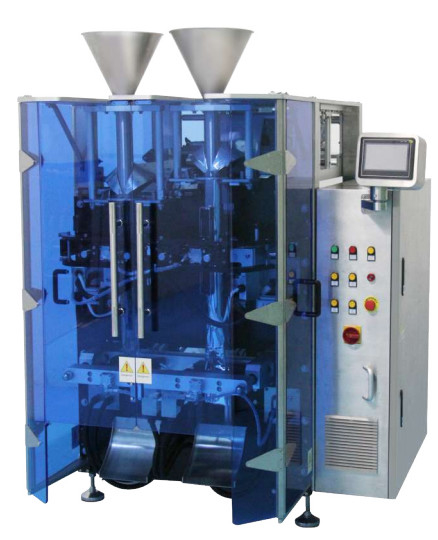

Two Bag Formers Vffs Packing Machine PLC Control YH-HD High Packing Speed

Two Bag Formers Vffs Packing Machine PLC Control YH-HD High Packing Speed

  • Two Bag Formers Vffs Packing Machine PLC Control YH-HD High Packing Speed
Two Bag Formers Vffs Packing Machine PLC Control YH-HD High Packing Speed
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-HD
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Using For Packing Material: Ss304
Product Type: Packing Machine Power: 6KW
Gas Pression: 0.8Mpa Gas Consumption: 0.6m³/min
High Light:

Two Bag Formers Vffs Packing Machine

,

6KW Vffs Packing Machine

,

0.8Mpa Vffs Packing Machine





YH-HD series two bag formers vffs packing machine






Applications:






1.Applicable Bag Type: pillow bag.

2.Applicable Film Material: a variety of laminated films, single-layer PE film, film thickness range0.04~0.09mm.






Freature:




1.PLC control, man-machine interface, easy tooperate and maintaince.

2.Both film pulling driven system and horizontal sealing driven system controlled by servo motor.

3.Optical tracking devices to keep high packing speed and high accuracy.

4.The frame of machine is made of #304 stainless steel, equiped with auto-stop protection function when open the door.







Parameter:





Model YH-HD3830
Film Width 150-380mm
Bag Size Range L*W=(50-300)*(50-180)mm
Packing Speed 2*90bag/min
Film Pulling System vacuum film puling system
Gas Pression 0.8MPa
Gas Consumption 0.6m³/min
Power Requirement 6Kw/220V/50(6O)Hz
Machine Size L*W*H=2050*1850*1915mm
Machine Weight 680KG







Two Bag Formers Vffs Packing Machine PLC Control YH-HD High Packing Speed 0Two Bag Formers Vffs Packing Machine PLC Control YH-HD High Packing Speed 1




Two Bag Formers Vffs Packing Machine PLC Control YH-HD High Packing Speed 2
