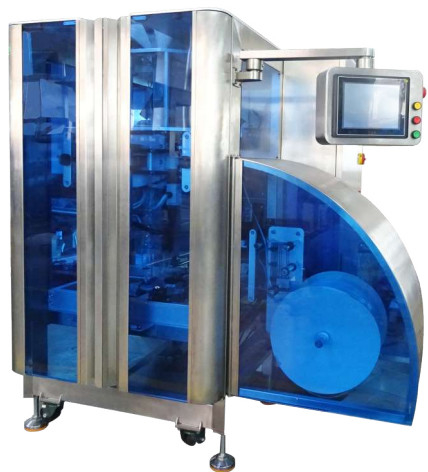

Pulling Driven Standup Bag Packing Machine Servo Motor 5 - 40bag / Min YH-Ml Series Zip Lock

Pulling Driven Standup Bag Packing Machine Servo Motor 5 - 40bag / Min YH-Ml Series Zip Lock

  • Pulling Driven Standup Bag Packing Machine Servo Motor 5 - 40bag / Min YH-Ml Series Zip Lock
Pulling Driven Standup Bag Packing Machine Servo Motor 5 - 40bag / Min YH-Ml Series Zip Lock
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-ML
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Using For Packing Material: Ss304
Product Type: Packing Machine Power: 5/6KW
Gas Pression: 0.6-0.8Mpa Gas Consumption: 0.4-0.6m³/min
High Light:

Pulling Driven Standup Bag Packing Machine

,

40bag/Min Standup Bag Packing Machine

,

6KW Standup Bag Packing Machine





YH-ML series zip-lock standup bag packing machine






Applications:






1.Applicable Bag Type: pillow bag.

2.Applicable Film Material: a variety of laminated films, single-layer PE film, film thickness range0.04~0.09mm.






Freature:




1.PLC control, man-machine interface, easy tooperate and maintaince.

2.Both film pulling driven system and horizontal sealing driven system controlled by servo motor.

3.Optical tracking devices to keep high packing speed and high accuracy.

4.The frame of machine is made of #304 stainless steel, equiped with auto-stop protection function when open the door.







Parameter:





Model YH-ML5220 YH-ML7230
Film Width 250-520mm 250-720mm
Bag Size Range L*W=(100-235)*(50-200)mm L*W=(100-335)*(50-300)mm
Bag Bottom Width 30-60mm 40-100mm
Packing Speed 5-40bag/min 5-40bag/min
Power Requirement 5Kw/220V/50(6O)Hz 6Kw/220V/50(6O)Hz
Gas Pression 0.6-0.8MPa 0.6-0.8MPa
Gas Consumption 0.4m³/min 0.6m³/min
Machine Size L*W*H=2015*1650*1910mm L*W*H=2150*1710*2040mm
Machine Weight 550KG 700KG





Pulling Driven Standup Bag Packing Machine Servo Motor 5 - 40bag / Min YH-Ml Series Zip Lock 0Pulling Driven Standup Bag Packing Machine Servo Motor 5 - 40bag / Min YH-Ml Series Zip Lock 1






Pulling Driven Standup Bag Packing Machine Servo Motor 5 - 40bag / Min YH-Ml Series Zip Lock 2
