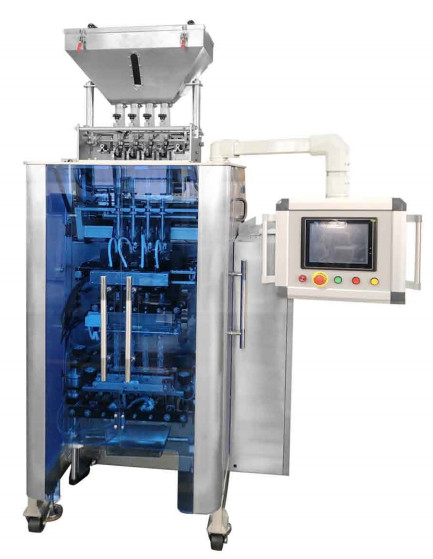

Film Multi Lines Packing Machine 0.07 ~ 0.1mm 25 - 45bags / Min Yh-Db Series

Film Multi Lines Packing Machine 0.07 ~ 0.1mm 25 - 45bags / Min Yh-Db Series

  • Film Multi Lines Packing Machine 0.07 ~ 0.1mm 25 - 45bags / Min Yh-Db Series
Film Multi Lines Packing Machine 0.07 ~ 0.1mm 25 - 45bags / Min Yh-Db Series
Product Details:
Place of Origin: China
Brand Name: Gracias
Model Number: YH-DB
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: As discuss
Packaging Details: Standard export packaging
Delivery Time: 25-30 work days
Payment Terms: TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability: 300 sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 220V/50(60)Hz Warranty: 12 Months
Condition: New After-sales Service Provided: Online Support, Video Technical Support
Use: Using For Packing Material: Ss304
Product Type: Packing Machine Power: 6-11KW
Gas Pression: 0.6Mpa Gas Consumption: 0.5-1m³/min
High Light:

Yh-Db Multi Lines Packing Machine

,

45bags/Min Multi Lines Packing Machine

,

0.1mm Multi Lines Packing Machine





YH-DB Series Multi Lines Packing Machine






Applications:






1.Applicable Bag Type: a variety of stick pack,

standard pillow bag or irregular bag. Film thickness range is 0.07~0.1mm.

2.Applicable Film Material: a variety of laminated films,aluminum film,paper film.

3.Applicable Packing Material: all kinds of fine powder,small granule,liquid and gel, such as coffee powder,spice powder. milk powder, sugar, salt, pepper,honey, oil, shampoo, ketchup, etc.






Freature:




1.PLC control, man-machine interface, easy tooperate and maintaince.

2.Both film pulling driven system and horizontal sealing driven system controlled by servo motor.

3.Optical tracking devices to keep high packing speed and high accuracy.

4.The frame of machine is made of #304 stainless steel, equiped with auto-stop protection function when open the door.







Parameter:







Model wP-DB300 wP-DB450 wP-DB600 wP-DB800
Packing Lines 3-5 lines 4-8lines 5-10lines 6-10lines
Film Width 90-300mm 300-450mm 450-600mm 600-800mm
Bag Size L*W=(60-180)*(17-60)mm L*W=(60-180)*(17-60)mm L*W=(60-180)*(17-60)mm L*W=(60-180)*(17-60)mm
Each Line Packing Speed 25~45bags/min 25~45bags/min 25~45bags/min 25~45bags/min
Power Requirement 6KW/220V/50(6O)HZ 7.5KW/220V/50(6O)HZ 10.5KW/220V/50(6O)HZ 11KW/220V/50(6O)HZ
Gas Pressure 0.6MPA 0.6MPA 0.6MPA 0.6MPA
Gas Consumption 0.5m³/min 0.6m³/min 0.9m³/min 1m³/min
Machine Size L*W*H=1300x1900x1750 L*W*H=1500*1900*1750 L*W*H=1650*1900*1750 L*W*H=1850*1900*1750
Machine Weight 500KG 600KG 700KG 800KG





Film Multi Lines Packing Machine 0.07 ~ 0.1mm 25 - 45bags / Min Yh-Db Series 0Film Multi Lines Packing Machine 0.07 ~ 0.1mm 25 - 45bags / Min Yh-Db Series 1




 Film Multi Lines Packing Machine 0.07 ~ 0.1mm 25 - 45bags / Min Yh-Db Series 2
