YH-HP Series Horizontal Packing Machine Highly Sensitive Photoelectric High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	YH-HP

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	As discuss
Packaging Details:	Standard export packaging
Delivery Time:	25-30 work days
Payment Terms:	TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability:	100-150 sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	220V/50N(60)Hz	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Online Support, Video Technical Support
Use:	Using For Packing	Material:	Ss304
Product Type:	Horizontal Packing Machine	Power:	2.6/2.8KW
Machine Dimension:	37707201450mm	Machine Weight:	450-600kg
Origin:	China
High Light:	YH-HP Series Horizontal Packing Machine , Photoelectric Horizontal Packing Machine , 2.8KW Horizontal Packing Machine

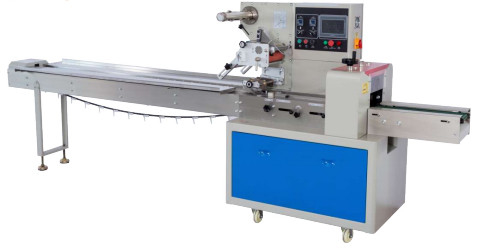

YH-HP series horizontal packing machine

Applications:

1.Applicable Packing Materials: biscuit, bread, moon cake,candy, medicine, hardware, meat,

vegetable or loaded by box/tray, etc.

Freature:

1.Automatic bag length detecting and setting while machine running.

2.Double frequency converter to control bag length and packing speed.

3.Highly sensitive photoelectric device to keep high accuracy.

4.lndependent temperature control for each sealer to make

tight sealing and suit for variety of flexible packing material.

Parameter:

Model	WP-HP250B	WP-HP250D	WP-HP320B
Max. Film Width	250mm	250mm	320mm
Bag Length	60-190mm/120-280m	90-220mm/150-330m	65-190mm/120-280m
Bag Width	50~110mm	50~110mm	50-160mm
Max.Product Height	40mm	60mm	40mm
Max. Roll Film Diameter	350mm	350mm	320mm
Packing Speed	40~180bags/min	40~180bags/min	40~180bags/min
Power Requirement	2.6KW/220V/50N(60)Hz	2.6KW/220V/50N(60)Hz	2.6KW/220V/50N(60)Hz
Machine Size	*LWH=37707201450mm*	*LWH=37707201450mm*	*LWH=37707201450mm*
Machine Weight	450KG	450KG	460KG

Model	WP-HP400D	WP-HP450D	WP-HP600D
Max. Film Width	400mm	450mm	600mm
Bag Length	150-400m	150-450m	150-450m
Bag Width	30-190mm	50-210mm	50-280mm
Max.Product Height	80mm	100mm	100mm
Max. Roll Film Diameter	350mm	350mm	350mm
Packing Speed	40-180bags/min	40-150bags/min	40-150bags/min
Power Requirement	2.8KW/220V/50N(60)Hz	2.8KW/220V/50N(60)Hz	2.8KW/220V/50N(60)Hz
Machine Size	*LWH=4020800450mm*	*LWH=40208001450mm*	*LWH=40209001450mm*
Machine Weight	500KG	580KG	600KG
