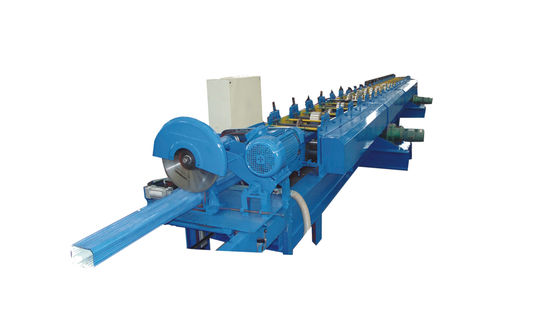

12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel

12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel

12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel
video
12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE
Model Number: Downspout roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: as customer's request
Delivery Time: 30-50 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 40sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Tile Type: Steel Use: Downspout,pipe
Color: Blue Warranty: One Year
Voltage: 380V 50/60Hz 3phases Control System: PLC Control With Touch Screen
Thickness: 0.4-0.8mm After-sales Service Provided: Wholelife Online Support
High Light:

CE Downspout Pipe Roll Forming Machine

,

12m/min Downspout Pipe Roll Forming Machine

,

yellow tube roll forming machine

Pipe downspout roll forming machine, water falling tube roll forming machine

Advantage of metal down pipe

galvanized steel guttering resists thermal expansion and contraction, which means that it

remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime

value, as it can be recycled.



Machine Specifications
Weight About 5000kgs
Size About 11m x 1.2m x 1m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.5-0.8mm
Coil width 325mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20-22
Diameter of forming rollers shafts 60mm
Roll Forming Speed 8-12m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Motor of roll forming machine: 5.5kw
Motor of sawing cutter: 3kw
Motor of elbow machine: 1.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
Sawing Cutting system 1 set
PLC control box 1 set

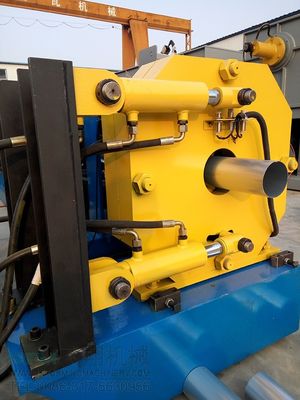

Elbow machine 1 set
Run outs tables 1 set

Process flow:

Decoiler-feeding--forming--measuring--cutting --output with table

Main equipment: Decoiler, forming machine, hydraulic cutting, PLC, product stand

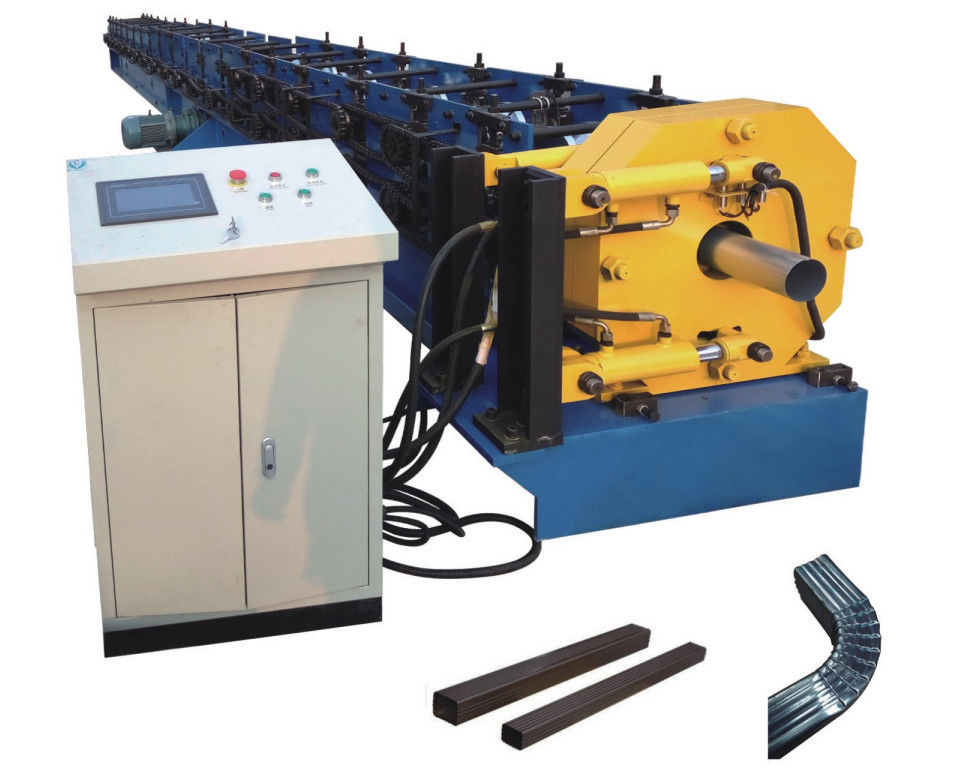

12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel 0
12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel 1

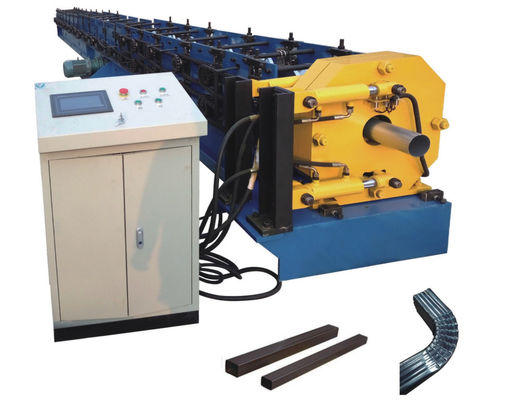

Final products and drawing

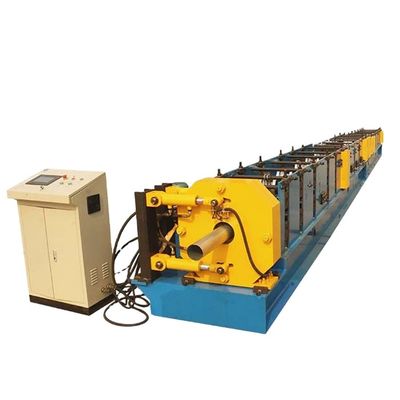

12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel 2

12m/min Downspout Pipe Roll Forming Machine CE Quenched Steel 3
