Place of Origin: | China |
Brand Name: | Gracias |
Certification: | CE |
Model Number: | Downspout pipe |
Minimum Order Quantity: | one set |
---|---|
Price: | As discussion |
Packaging Details: | as request |
Delivery Time: | 30-50 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 15sets per month |
Pipe Material: | Stainless Steel,Iron,Aluminum | Thickness: | 0.3-0.8mm |
---|---|---|---|
Pipe Shape: | Round,square | Control System: | PLC |
Voltage: | 380V 50/60Hz 3phases | Warranty: | One Year |
High Light: | 8m/min Downspout Pipe Roll Forming Machine,Round Downspout Pipe Roll Forming Machine,15kw steel roll forming machine |

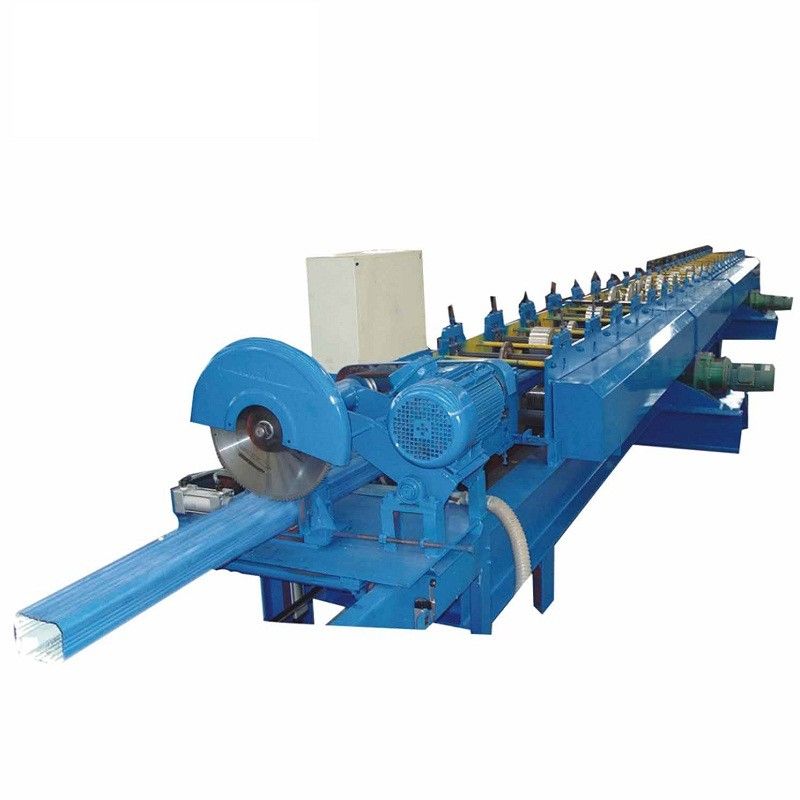

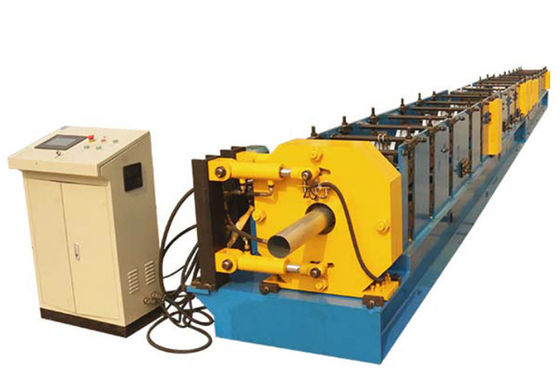

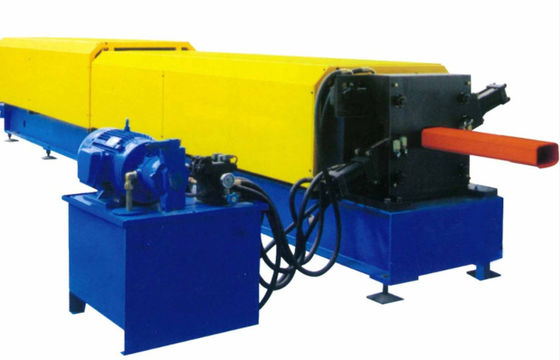

Rain Water Downspout Pipe Roll Forming Machine 8m/min
Down pipe machine or Downspout forming machine make precise and well
sealed roof drain pipe, leader is a pipe for carrying rainwater from a rain gutter.
Advantage of metal down pipe;
galvanized steel guttering resists thermal expansion and contraction, which
means that it remains unaffected from sudden fluctuations in temperature.
Steel has an excellent lifetime value, as it can be recycled.
Rolled material | aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
thickness | 0.3-0.8mm |
Feeding width | 312.5mm |
speed | 8-12m/min |
Forming steps | 14 stations |
Roller | 45# forged steel, hard chrome plating within 0.05mm |
Diameter of shaft | 80mm |
Main motor power | 15 kw |
Pump power | 5.5 kw |
Drive type | by chains |
Cutting Blade | Cr12, heat treatment 60-62°C |
Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
Size of the machine | 9.5m*1.2m*1.25m |
Weight of the machine | 6.5Tons |
