Downspout Gutter Roll Forming Machine 15m/min Chain Transmission

Downspout Gutter Roll Forming Machine 15m/min Chain Transmission

Downspout Gutter Roll Forming Machine 15m/min Chain Transmission
video
Downspout Gutter Roll Forming Machine 15m/min Chain Transmission
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: Downspout
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: fit for ocean shipping
Delivery Time: 30-50 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 40sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Use: Gutter Weight: 6T
Control System: PLC,Totally Automatic Warranty: One Year
Voltage: 380V 50Hz 3phases Thickness: 0.3-0.6mm
High Light:

Downspout Gutter Roll Forming Machine

,

15m/min Gutter Roll Forming Machine

,

6T metal stud machine

Downspout Gutter Roll Forming Machine 15m/min Chain Transmission





Machine detail part

Product Name
down pipe roll forming machine
Material
Type
Pre-painted & galvanized steel coil
Thickness(mm)
0.3-0.7mm
Tield stress(Mpa)
Q235-345
Max.forming speed (m/min)
10-15m/min
Roller material
#45 steel with hard chrome treatment
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure(Mpa)
12
Main motor power(KW)
4
Hydraulic station motor power
3
Dimension (L*W*H)
about 11100*1500*1500mm
Weight (KG)
about 6000



Decoiler --forming--- cutter -stand

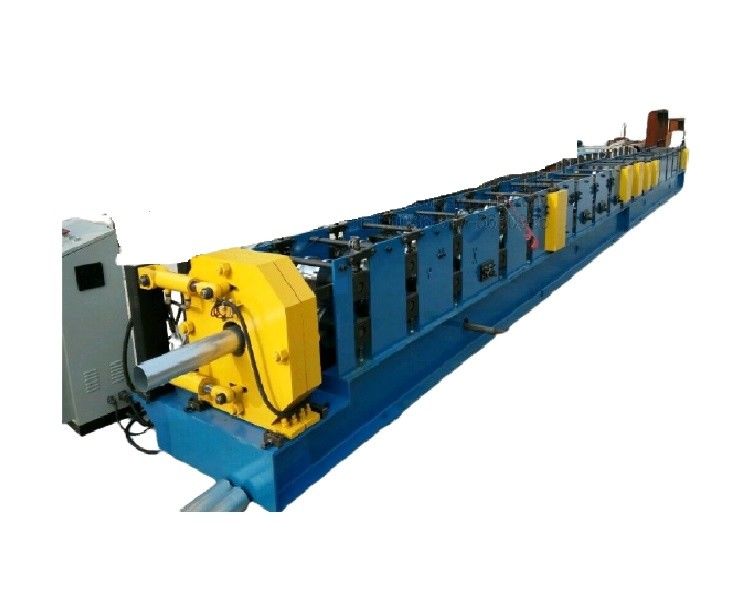

Round Downspout Roll Forming Machine



Downspout Gutter Roll Forming Machine 15m/min Chain Transmission 1



Tag:

CE Downspout Pipe Roll Forming Machine,

gutter metal roll forming machine,

6m/min Round Pipe Roll Forming Machine
