Square Downspout Pipe Roll Forming Machine 15m/min 4.2T

Square Downspout Pipe Roll Forming Machine 15m/min 4.2T

  • Square Downspout Pipe Roll Forming Machine 15m/min 4.2T
  • Square Downspout Pipe Roll Forming Machine 15m/min 4.2T
  • Square Downspout Pipe Roll Forming Machine 15m/min 4.2T
Square Downspout Pipe Roll Forming Machine 15m/min 4.2T
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: fit for shipping
Delivery Time: 20-40work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20sets per month
Contact Now
Detailed Product Description
Voltage: 380V Condition: New
Weight: 4.2T Warranty: 1 Year
Thickness: 0.4-0.6mm After-sales Service Provided: Online Support
High Light:

4.2T Downspout Pipe Roll Forming Machine

,

15m/min Downspout Pipe Roll Forming Machine

,

rainwater square tube making machine

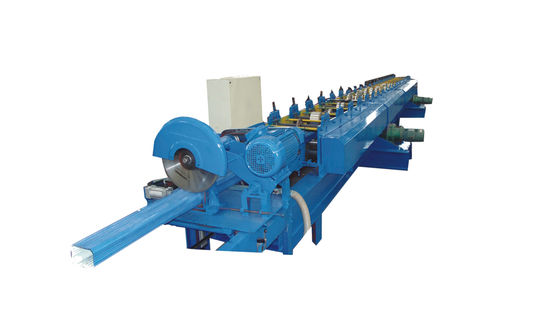

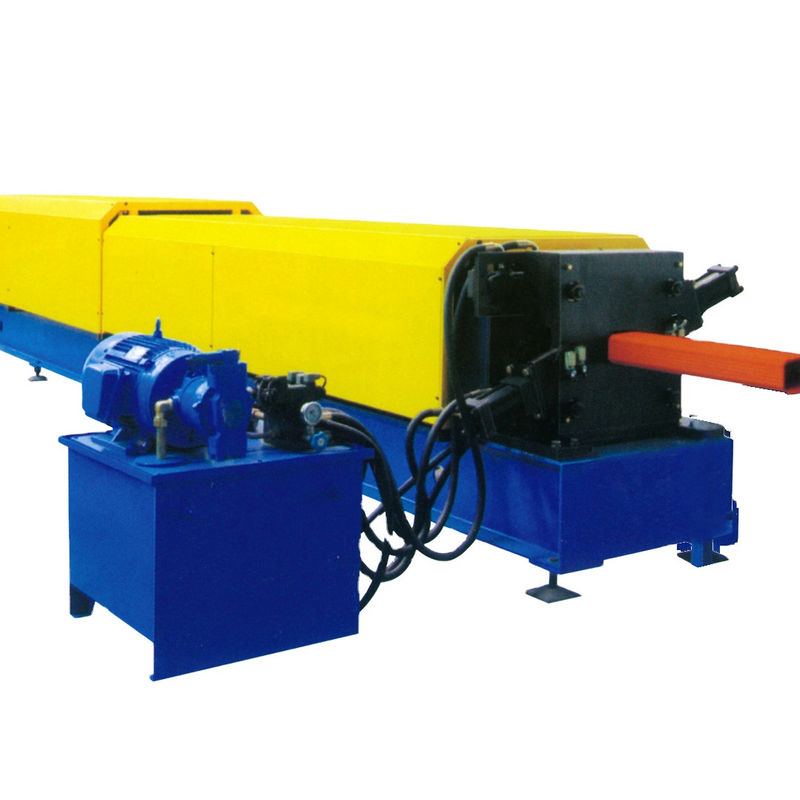

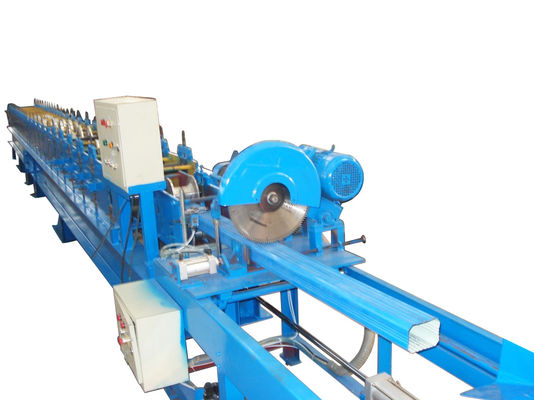

Square Downspout Pipe Roll Forming Machine 15m/min 4.2T

Down pipe machine or Downspout forming machine make precise and well sealed roof drain pipe, leader is a pipe for carrying rainwater from a rain gutter.

Advantage of metal down pipe;

galvanized steel guttering resists thermal expansion and contraction, which means that it remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime value, as it can be recycled.

Product Name
down pipe roll forming machine
Material
Type
Pre-painted & galvanized steel coil
Thickness(mm)
0.3-0.7mm
Tield stress(Mpa)
Q235-345
Max.forming speed (m/min)
10-15m/min
Roller material
#45 steel with hard chrome treatment
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure(Mpa)
12
Main motor power(KW)
4
Hydraulic station motor power
3
Dimension (L*W*H)
about 11100*1500*1500mm
Weight (KG)
about 6000

Round Downspout Roll Forming Machine
