100 Keel Roll Forming Machine C Shape Ceiling Tile Type

100 Keel Roll Forming Machine C Shape Ceiling Tile Type

  • 100 Keel Roll Forming Machine C Shape Ceiling Tile Type
  • 100 Keel Roll Forming Machine C Shape Ceiling Tile Type
  • 100 Keel Roll Forming Machine C Shape Ceiling Tile Type
  • 100 Keel Roll Forming Machine C Shape Ceiling Tile Type
100 Keel Roll Forming Machine C Shape Ceiling Tile Type
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: 50/75/100 CU
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: Standard export package
Delivery Time: 30-50 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 35sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50/60Hz 3phases Tile Type: Steel,ceiling
Warranty: 12month Color: Client's Request,blue,yellow
Product Name: Metal C Shape Furred Ceil Studs Track,Lighting Sheet Usage: Steel Construction
High Light:

100 Keel Roll Forming Machine

,

C Shape Keel Roll Forming Machine

,

1.5T ceiling making machine

50 75 100 drywall profile roll forming machine



Drywall profile is widely used in building construction. There will be H-shaped holes on the profile of C-type drywall. H-hole is designed to make it easier for wires to pass through. There are round holes on the U-shaped keel, which are used for riveting. If you need this machine, you can tell us your size and punching hole shape, so that we can design for you.



Name SET Use TO
1.5 T Manual decoiler 1 set

Loading the coil


Main forming machine and cutter 1 set

12 stations forming the shape.Cutting the length as request.

Raw material rough turning→quenched→polish by grinding maching →CNC fine turning
PLC control system 1set

1.Language as request



2.Text and touch screen for chose



3.Brand PLC:Panasonic /Delta /Mitsubish
Oil pump 1 set

Make coolling as request


Product stand 1 set

Stand finishing product


Remark



All equipment can order as customer’s request

50/75/100 CU Stud and Track Cold Roll Forming Machine Cold Rolling Mill

100 Keel Roll Forming Machine C Shape Ceiling Tile Type 1

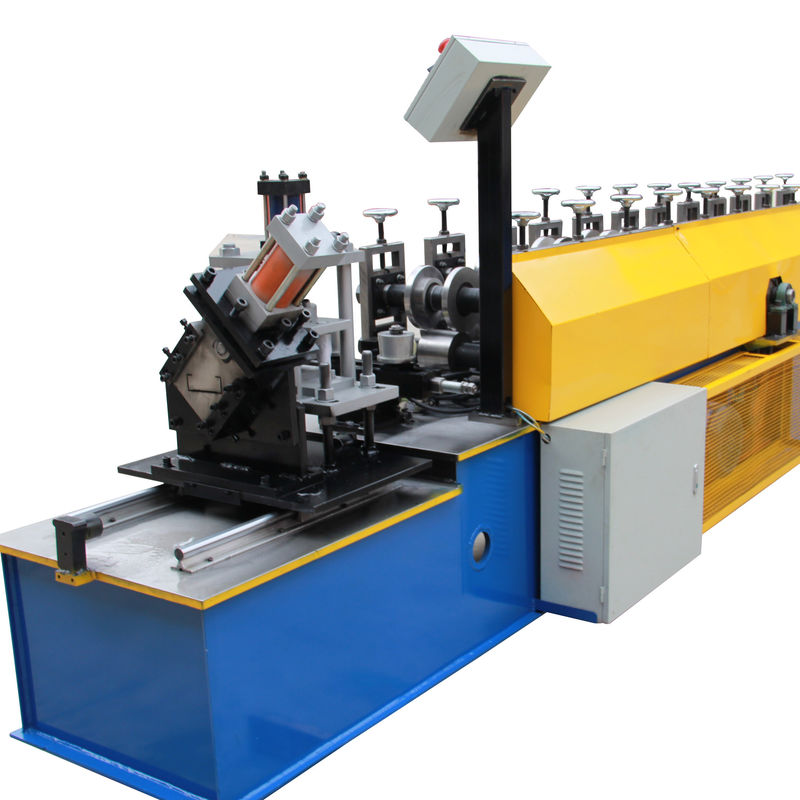

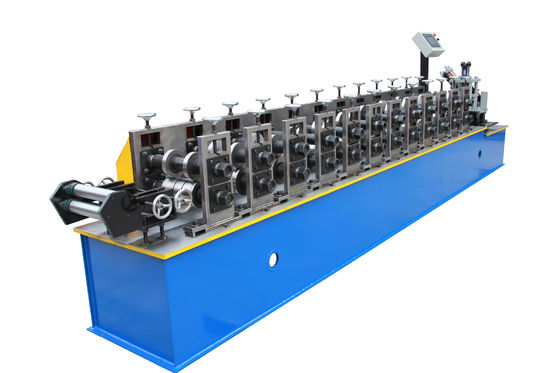

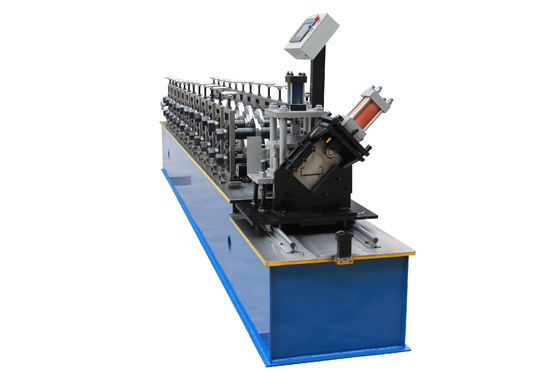

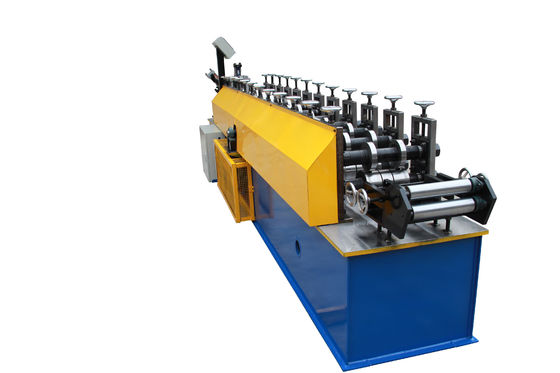

Forming Machine photo



50/75/100 CU Stud and Track Cold Roll Forming Machine Cold Rolling Mill







50/75/100 CU Stud and Track Cold Roll Forming Machine Cold Rolling Mill
