T Bar Keel Roll Forming Machine 8m/min 15 Roller Station

T Bar Keel Roll Forming Machine 8m/min 15 Roller Station

  • T Bar Keel Roll Forming Machine 8m/min 15 Roller Station
  • T Bar Keel Roll Forming Machine 8m/min 15 Roller Station
  • T Bar Keel Roll Forming Machine 8m/min 15 Roller Station
  • T Bar Keel Roll Forming Machine 8m/min 15 Roller Station
T Bar Keel Roll Forming Machine 8m/min 15 Roller Station
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: T bar
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: As discussion
Packaging Details: as customer's request
Delivery Time: 25-50 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 50sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Color: Client's Request
Condition: New Weight: 5 Tons
Warranty: One Year Control System: PLC
High Light:

5T Keel Roll Forming Machine

,

8m/min Keel Roll Forming Machine

,

hydraulic t bar roll forming machine

T Bar Keel Roll Forming Machine 8m/min 15 Roller Station

1. The chart of process flow:

Decoiling--active feeding---forming---measuring length---punching machine---cutting---product to stand



2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.



3. Technical parameters

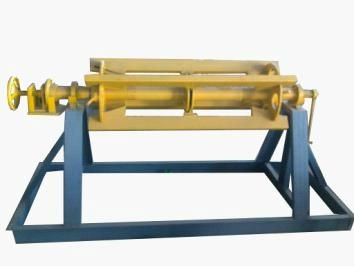

1) inner tight decoiler

Coil inner diameter 450-700mm
Max width of coiling 1250mm
Max weight of loading 5000kg

Ceiling t grid roll forming machine / T bar suspended ceiling grid production line

2) main forming machine

Shaft material bearing steel outer diameter 85mm
Main motor power 5.5kw
Forming speed 8-10m/min
Voltage 380v,50hz
Roller station 15

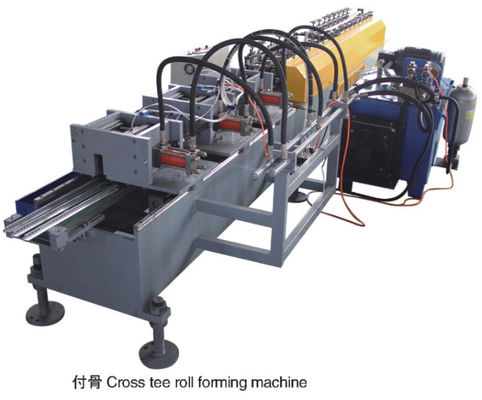

T Bar Keel Roll Forming Machine 8m/min 15 Roller Station 1

3) cutting system

A. hydraulic cutter

B. Blade and mould material: Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming



4) hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw



Profile :

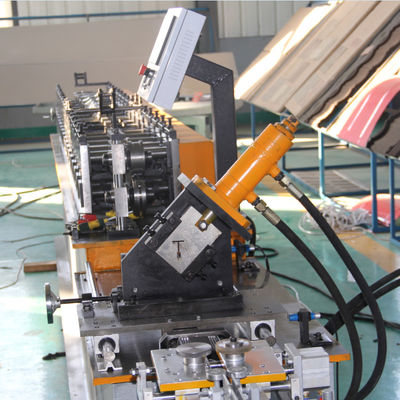

T Bar Keel Roll Forming Machine 8m/min 15 Roller Station 2

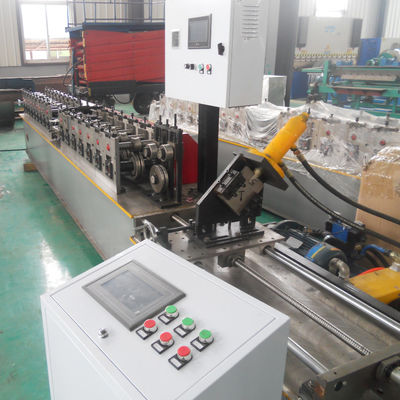

T Bar Keel Roll Forming Machine 8m/min 15 Roller Station 3T Bar Keel Roll Forming Machine 8m/min 15 Roller Station 4

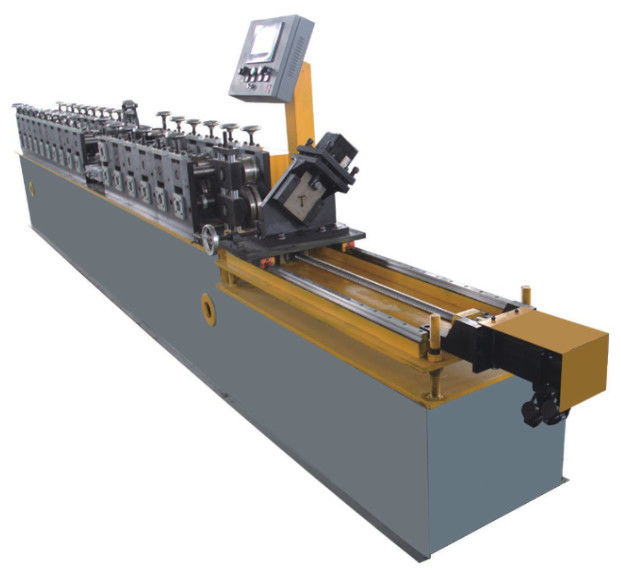

T Bar Keel Roll Forming Machine 8m/min 15 Roller Station 5



Tag:

25m/min Ceiling Roll Forming Machine,

60 Drywall Roll Forming Machine,

100 Keel Roll Forming Machine
