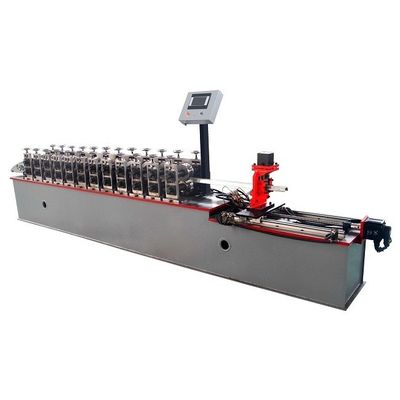

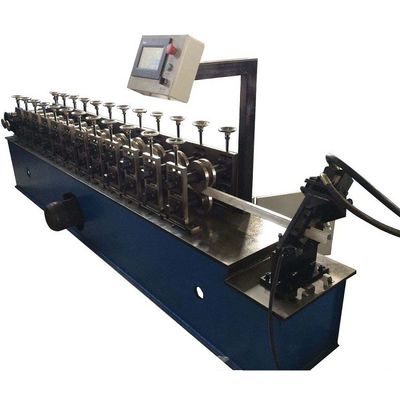

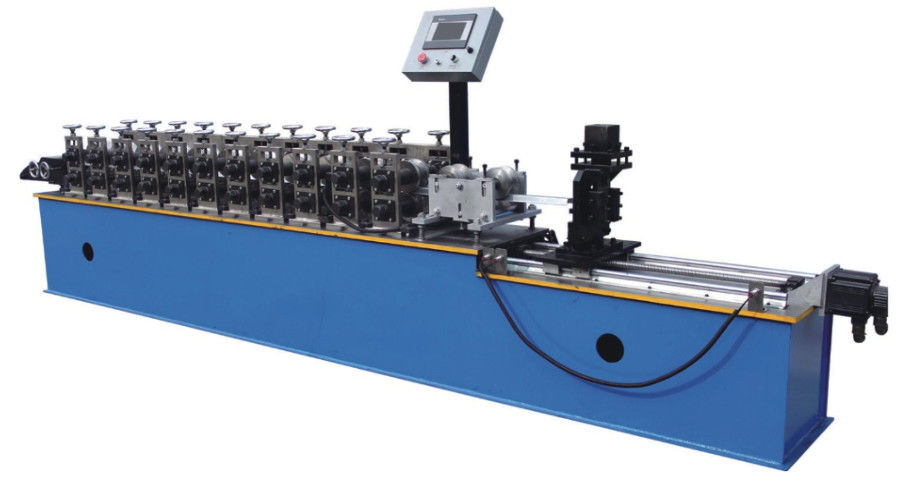

2T Furring Channel Roll Forming Machine 40m/min Steel Tile

2T Furring Channel Roll Forming Machine 40m/min Steel Tile

  • 2T Furring Channel Roll Forming Machine 40m/min Steel Tile
  • 2T Furring Channel Roll Forming Machine 40m/min Steel Tile
  • 2T Furring Channel Roll Forming Machine 40m/min Steel Tile
2T Furring Channel Roll Forming Machine 40m/min Steel Tile
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: ISO,CE
Model Number: Furring channel
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: fit for shipping
Delivery Time: 20-40work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Tile Type: Steel Warranty: 1 Year
Control System: PLC With Touch Screen Color: Blue
Voltage: 50HZ Three-phase Or You Need Condition: New
After-sales Service Provided: Online Support Weight: 2T
High Light:

2T Furring Channel Roll Forming Machine

,

CE Furring Channel Roll Forming Machine

,

40m/min steel roll forming machine

2T Furring Channel Roll Forming Machine 40m/min Steel Tile





2T Furring Channel Roll Forming Machine 40m/min Steel Tile 0

NO. Item Parameter
1 material as customers'request
2 feeding width as customers' request
3 material thinkness 0.3-0.6mm or as customers' request
4 machine size 3.5*0.7*1.2
5 machine weight 2T
6 voltage requirement 380V50Hz3P or as customers' request
7 working speed 35-40m/min
8 forming steps 11steps
9 rollers 45#steel with quenching
10 shaft 45#steel,diameter 50mm
11 transmission chain or gear
12 PLC Delta
13 motor 5.5kw
14 pump 4kw
15 cutter Cr12





Name SET Use TO
1.5 T Manual decoiler 1 set

Loading the coil


Main forming machine and cutter 1 set

12 stations forming the shape.Cutting the length as request.

Raw material rough turning→quenched→polish by grinding maching

→CNC fine turning
PLC control system 1set

1.Language as request



2.Text and touch screen for chose



3.Brand PLC:Panasonic /Delta /Mitsubish
Oil pump 1 set

Make coolling as request


Product stand 1 set

Stand finishing product


Remark

All equipment can order as customer’s request



profile drawing of the furring chanel roll forming machine(also can as customers'request)

2T Furring Channel Roll Forming Machine 40m/min Steel Tile 1



2T Furring Channel Roll Forming Machine 40m/min Steel Tile 2

2T Furring Channel Roll Forming Machine 40m/min Steel Tile 3



2T Furring Channel Roll Forming Machine 40m/min Steel Tile 4
