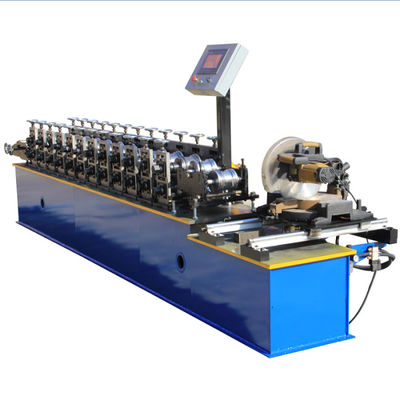

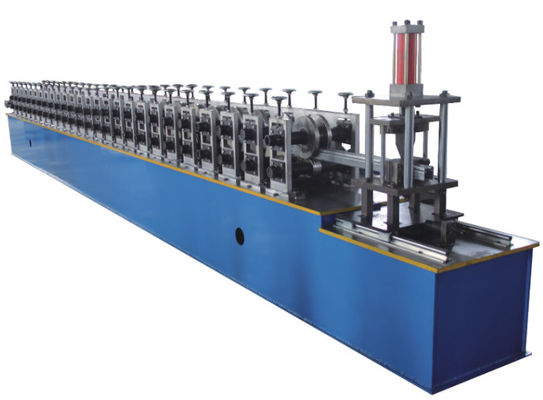

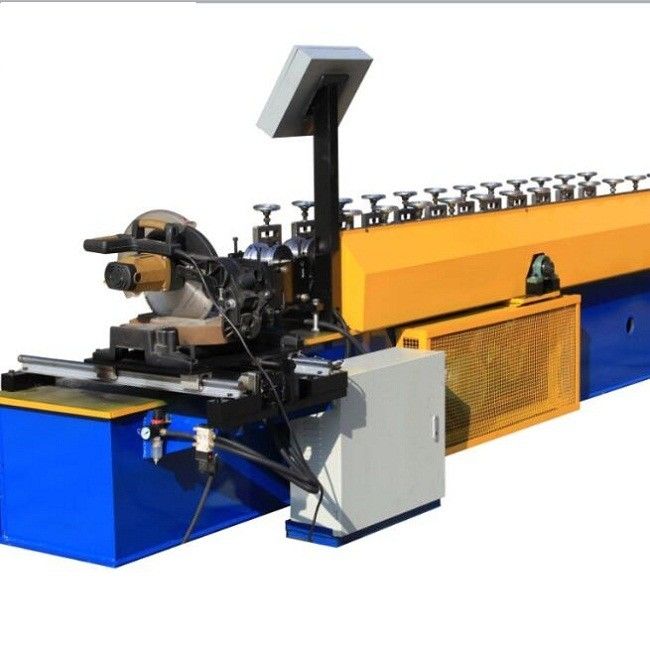

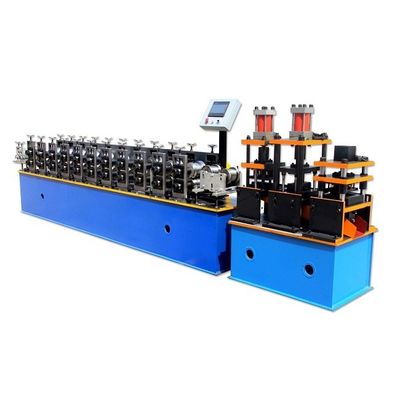

Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW

Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW

  • Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW
  • Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW
  • Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW
  • Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW
Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: guide rail
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: Standard export package
Delivery Time: 30-50 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 80sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Condition: New Warranty: 1 Year
Voltage: 380V,50Hz/60Hz Tile Type: Steel
Control: PLC Thickness: 0.4-0.8mm
Capacity: 15m/min After-sales Service: Online Support
High Light:

15m/min Shutter Door Roll Forming Machine

,

5.5kw Shutter Door Roll Forming Machine

,

automatic rolling shutter machine

Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW

1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching---cutting---product to stand



2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.



3. Technical parameters

1) Profile

thickness:0.3--0.8mm or 1--2mm



2) inner tight decoiler

Coil inner diameter 350-450mm
Max width of coiling 400mm
Max weight of loading 5000kg



3) main forming machine

Shaft material 45# steel,bearing steel outer diameter 85mm
Main motor power 5.5kw
Forming speed 15m/min
Voltage 380v,50hz
Roller station 15



4) cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming



4. Spare Parts

1) Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2) Rubber mat 1 pcs;

3) Bolt spanner 1 pcs

Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW 0

Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW 1

Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW 2



Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW 3





Guide Rail Shutter Door Roll Forming Machine 15m/min 5.5KW 4
