4.5T Storage Rack Roll Forming Machine 5.5KW For Aluminium Plate

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE,ISO
Model Number:	Storage rack

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	Negotiable
Packaging Details:	as request
Delivery Time:	30 work days
Payment Terms:	T/T, L/C
Supply Ability:	35sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Warranty:	1 Year	Weight:	4.5T
Voltage:	380V.50HZ.3Phase	Condition:	New
Control:	PLC	Oem:	YES
Working Speed:	10 -12m/min	After-sales Service Provided:	Online Support
High Light:	4.5T Storage Rack Roll Forming Machine , OEM Storage Rack Roll Forming Machine , 5.5kw metal sheet making machine

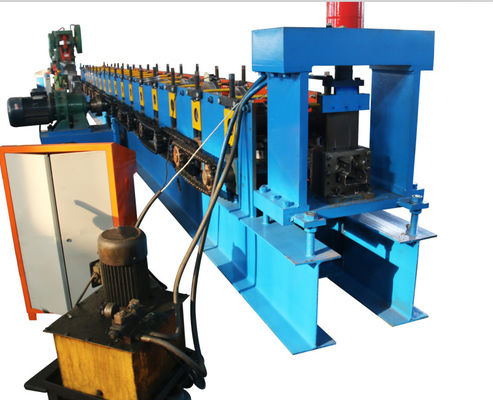

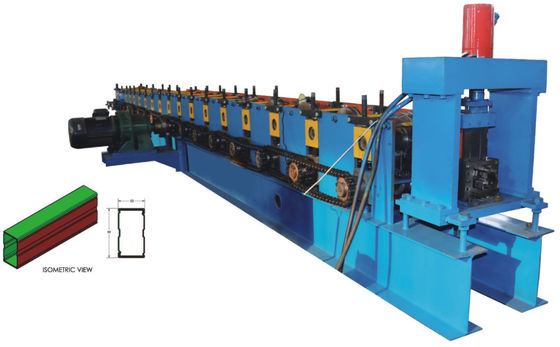

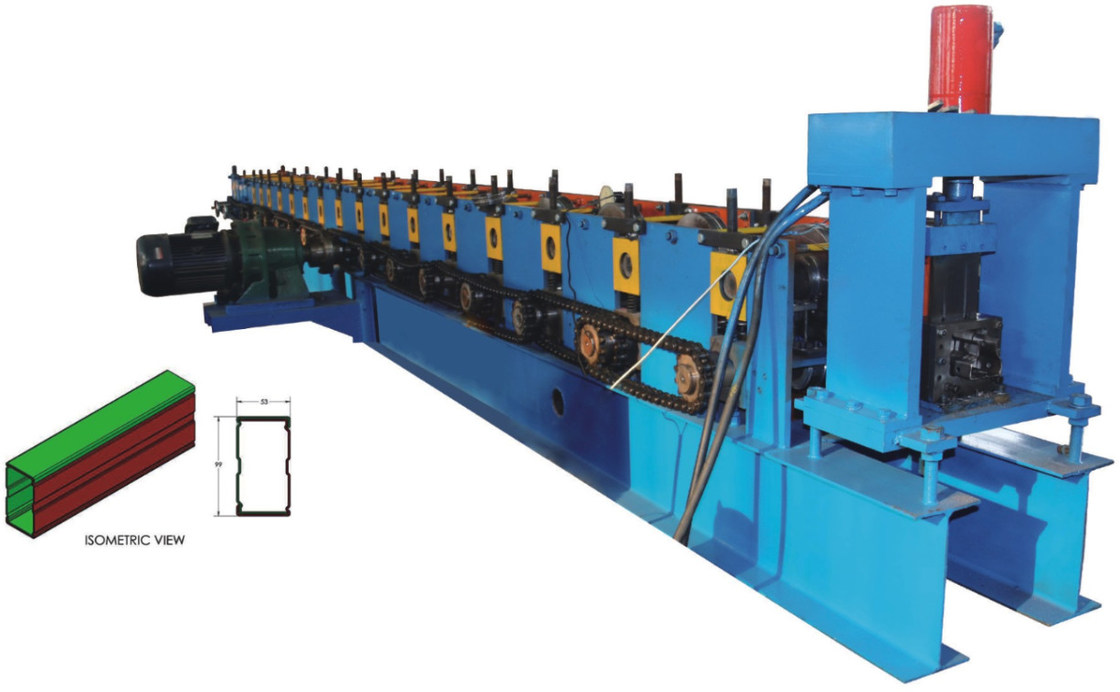

4.5T Storage Rack Roll Forming Machine For Aluminium Plate

Decoiler ---Punching ---Forming --Cutting

Super Market Storage Shelf Upright Pillar Roll Forming Machine

Name	Supermarket shelf roll forming machine
Processing material	galvanized sheet, or aluminium plate
Material thickness	0.8-1.5 mm
Material hardness	550 mpa---350 mpa
Material width	200mm(according to the profile)
Formed width	101.6mm (according to the profile)
Forming speed	12m/min
Working speed	8m/min
Voltage	380V 50HZ 3Phase
Roller fixer	Guide column
Frame	400 H steel
Drive mode	chain
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel with tempering
Diameter of shafts	φ70mm
Number of rollers	20 rollers
Main power	5.5kw
Hydraulic power	3kw
