50Hz Storage Rack Roll Forming Machine 25m/min Cr12 Hydraulic Cutting

50Hz Storage Rack Roll Forming Machine 25m/min Cr12 Hydraulic Cutting

50Hz Storage Rack Roll Forming Machine 25m/min Cr12 Hydraulic Cutting
video
50Hz Storage Rack Roll Forming Machine 25m/min Cr12 Hydraulic Cutting
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: Standard export package
Delivery Time: 30-50 work days
Payment Terms: T/T, L/C
Supply Ability: 30sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Warranty: 1 Year Control System: PLC(imported Brand)
Color: Blue Or As Per You Wish After-sales Service Provided: Online Support
High Light:

25m/min Storage Rack Roll Forming Machine

,

50Hz Storage Rack Roll Forming Machine

,

Cr12 steel sheet machine

50Hz Storage Rack Roll Forming Machine Cr12 Hydraulic Cutting

1. The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching---cutting---product to stand

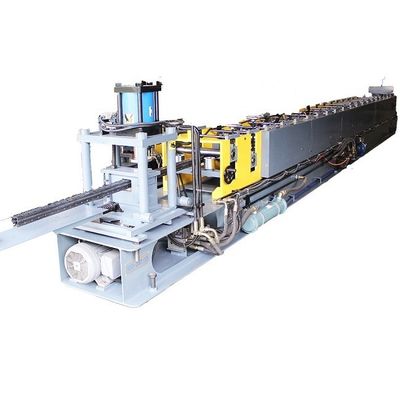

Storage rack upright roll forming machine

2. Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.



3. Technical parameters

1) Profile

thickness:0.3--0.8mm or 1--2mm



2) inner tight decoiler

coil inner diameter 350mm--450mm
max width of coiling 400mm
max weight of loading 5000kg



3) main forming machine

Shaft material 45# steel,bearing steel outer diameter 85mm
Main motor power 5.5kw
Forming speed 25m/min
Voltage 380v,50hz
Roller station 15



4) cutting system

A. hydraulic cutter

B. Blade and mould material: Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.



5) control system

A. PLC: taida form Taiwan

B. Coder:from south korea

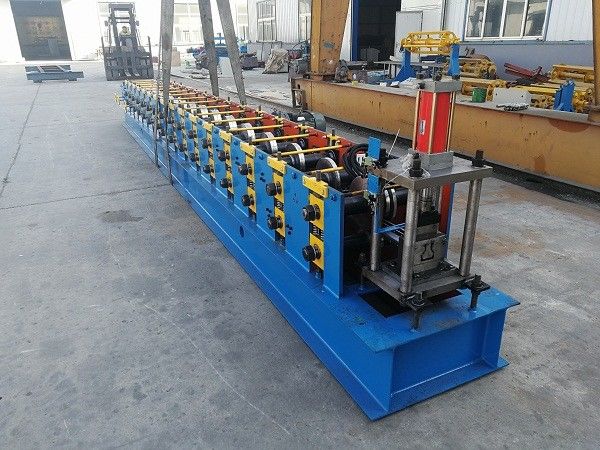

Storage rack upright roll forming machine

Storage rack upright roll forming machine

Storage rack upright roll forming machine

Storage rack upright roll forming machine

Storage rack upright roll forming machine

Tag:

white Upright Roll Forming Machine,

ISO Upright Roll Forming Machine,

15m/min rack making machine
