Hydraulic Storage Rack Roll Forming Machine 6.5T 15m/min

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	Storage rack

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for ocean shipping
Delivery Time:	45 work days
Payment Terms:	T/T, L/C
Supply Ability:	20sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Warranty:	1 Year	Weight:	6.5T
Voltage:	380V.50HZ.3Phase	Condition:	New
Tile Type:	Galvanized Steel	Control:	PLC
Oem:	YES	Working Speed:	10 -15m/min
High Light:	Hydraulic Storage Rack Roll Forming Machine , 6.5T Storage Rack Roll Forming Machine , 15m/min rack making machine

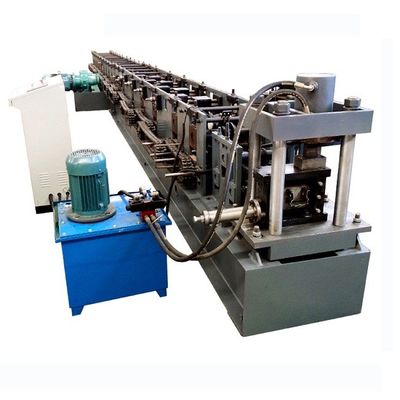

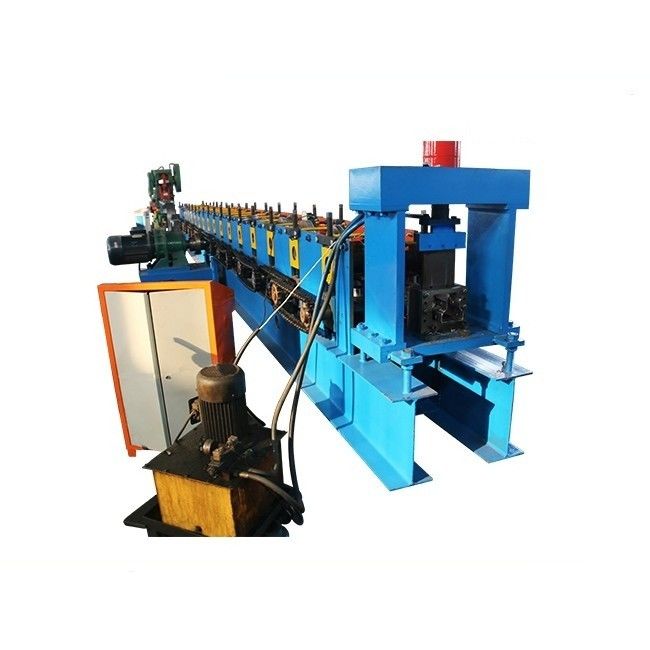

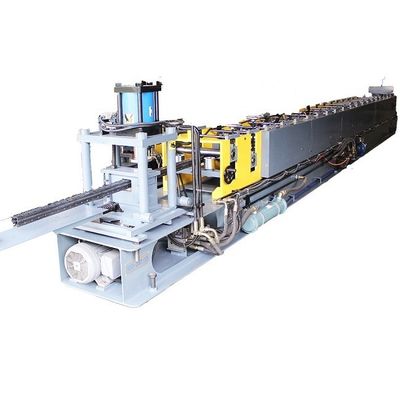

Hydraulic Storage Rack Roll Forming Machine 6.5T 15m/min

General description:

Hydraulic Press Easy Install Storage Rack Roll Forming Machine is a professional automatic

machine for making shelves pillar in various types for supermaket or warehouse using.

It suits for batch or mass producing supermake pillars. the machine can produce two or three

or more profiles with no change of rollers,it is easy to operate and high efficiency.

Suitable drawing:

material thickness 1.5-2.5mm

feeding width are 227 and 248mm

holes position at both bottom and vertical side.

Machine technical parameters:

Name	Storage Rack Roll Forming Machine
Working speed	10-15	m/min
Total weight	6.5	Tons
Whole size	75009001300	mm
Electric support	380 or as request	voltage
Motor power	11	kw
Pump power	4	kw
