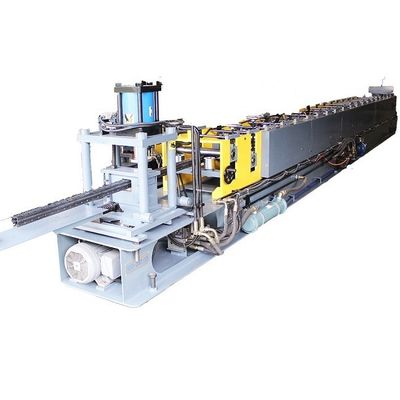

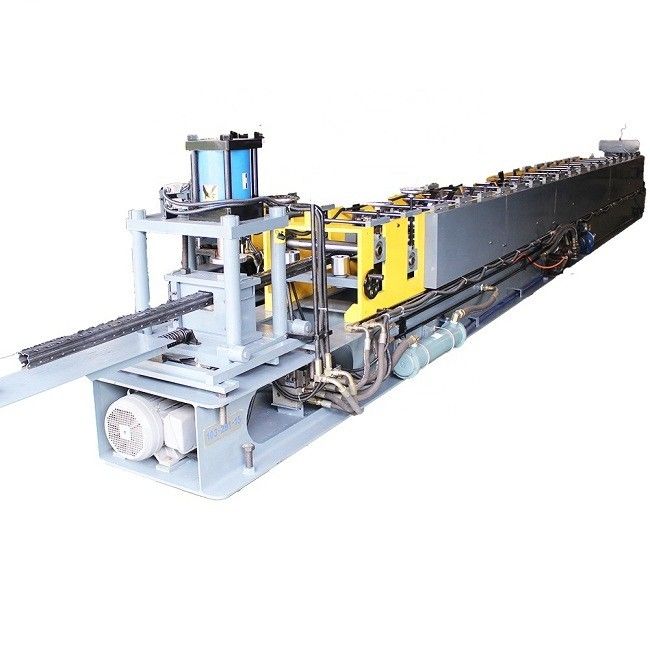

ISO 11KW Upright Roll Forming Machine Steel Frame Pillars
General description:
Hydraulic Press Easy Install Storage Rack Roll Forming Machine is a professional automatic
machine for making shelves pillar in various types for supermaket or warehouse using.
It suits for batch or mass producing supermake pillars. the machine can produce two or
three or more profiles with no change of rollers,it is easy to operate and high efficiency.
Machine technical parameters:
| Name |
Storage Rack Roll Forming Machine |
| Working speed |
10-15 |
m/min |
| Total weight |
6.5 |
Tons |
| Whole size |
7500*900*1300 |
mm |
| Electric support |
380 or as request |
voltage |
| Motor power |
11 |
kw |
| Pump power |
4 |
kw |
Suitable drawing:
material thickness 1.5-2.5mm
feeding width are 227 and 248mm
holes position at both bottom and vertical side.
Finised product show:
Working flow chart:
Machine components:
a, 3t single head decoiler
b, Electric motor drive leveling device
c, Press power 63T punching machine with servo motor

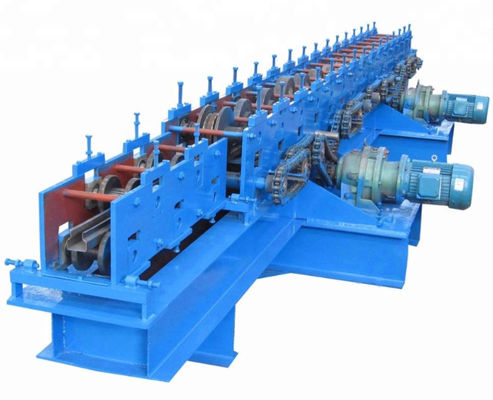

d, Main roll forming machine
e, Three blade shearing part :
(1) Shearing type:It adopts the hydraulic drive and automatic location to decide the dimension
and cut the target products.
(2) Material:GCr12,Quenching Oil HRC58-62°C
(3) Length :automatically cut in specified length
(4) Advantages: no twist low noise,high accuracy.
