Main roll forming system of door frame roll forming machine?

Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded
sheet structure, motor reducer drive, chain transmission,
roller surfaces polishing, hard plating,heat treatment and galvanized treatment .
The polished surface and the heat treatment towards the molds also can keep the molding

plate surface smooth and not easy to be marked when it is being stamped.
Roller fixer : Guide column
Frame : 400 H steel
Drive mode: gear box
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ70mm
Number of rollers : 20 rollers
Main power: 5.5kw(cycloidal planetary gear speed reducer)
Hydraulic power : 3kw

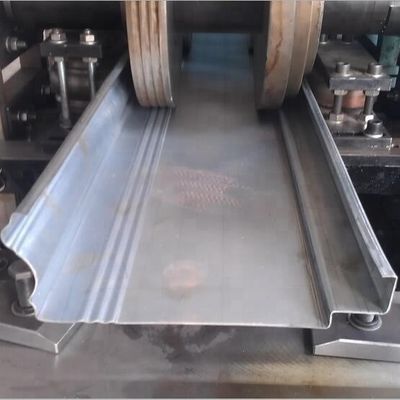

And for the punching of door frame like jamb, lock and connection part.
