ISO Standing Seam Roll Forming Machine 18m/min For Shutter Doors

ISO Standing Seam Roll Forming Machine 18m/min For Shutter Doors

The finished product of Steel Door Frame Roll Forming Machine is widely used

in the construction of various industrial plants, villages, warehouses, supermarkets,

hotels, exhibition, family construction, shopping malls shutter doors and etc. It has

the advantage of beautiful, classical appearance and grace taste.

Drawings of galvanized steel door frame for reference:

Suitable material for door frame machine?

Processing material: colored steel plate, galvanized plate, or aluminium plate

Material thickness: 0.8---1.5mm

Material hardness: 550 mpa---350 mpa

Material width: according to the drawing

Formed width: according to the drawing

Forming speed:10-18m/min

Uncoiler System for door frame roll forming machine?

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

Loading capacity:5T

Uncoiling width:550mm

Inner diameter: 450-550mm

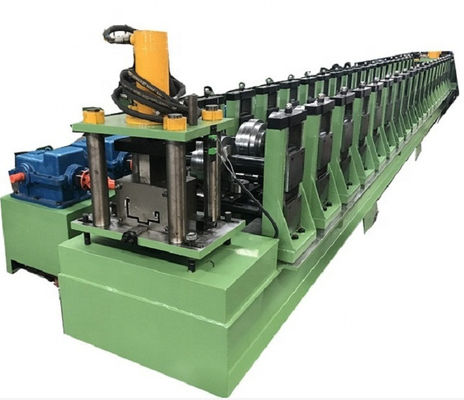

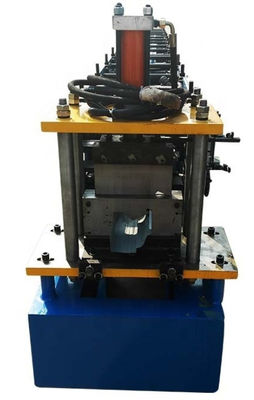

Main roll forming system of door frame roll forming machine?

Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded
sheet structure, motor reducer drive, chain transmission,
roller surfaces polishing, hard plating,heat treatment and galvanized treatment .
The polished surface and the heat treatment towards the molds also can keep

the molding plate surface smooth and not easy to be marked when it is being stamped.
Roller fixer : Guide column
Frame : 400 H steel
Drive mode: gearbox
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ80mm
Number of rollers : 16 rollers
Main power: 5.5kw(cycloidal planetary gear speed reducer)
Hydraulic power : 4kw

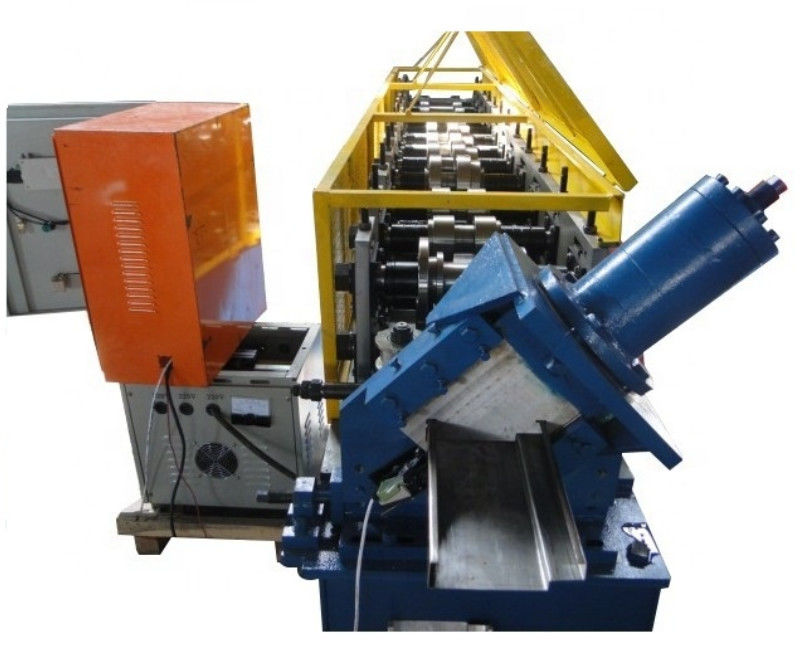

And for the punching of door frame like jamb, lock and connection part also provided.
