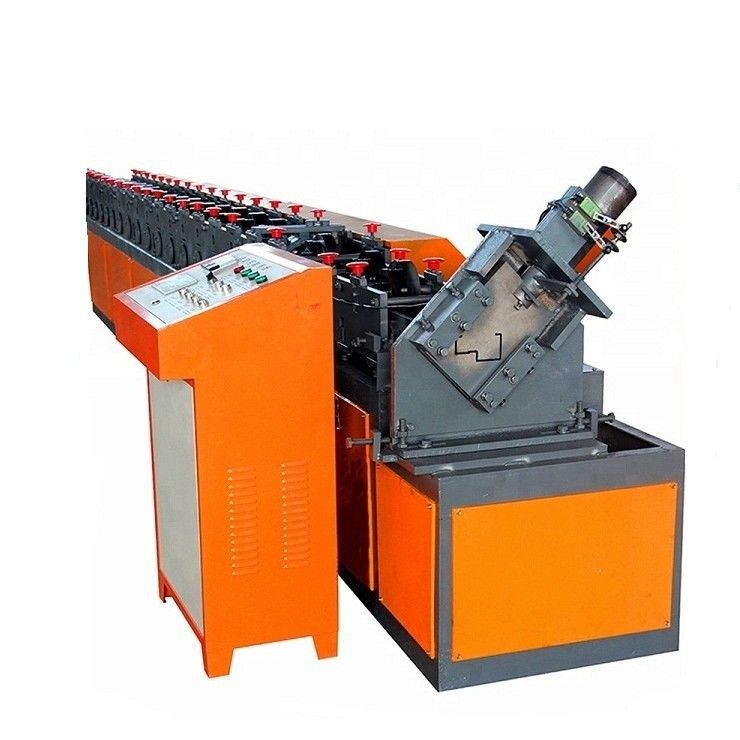

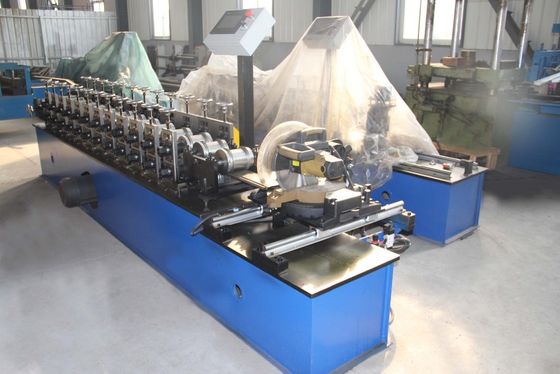

50Hz Door Frame Roll Forming Machine 12m/min 2 Leveling Shafts

Name: 50Hz Door Frame Roll Forming Machine 12m/min 2 Leveling Shafts
Brand: Gracias
SKU: Gracias
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (187 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Gracias

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	25-50 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	25sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V 50Hz 3phases	Condition:	New
Tile Type:	Steel	Control System:	PLC(imported Brand)
Warranty:	One Year	After-sales Service Provided:	Video Technical Support
High Light:	50Hz Door Frame Roll Forming Machine , 12m/min Door Frame Roll Forming Machine , galvanized steel frame roll former

50Hz Door Frame Roll Forming Machine 12m/min 2 Leveling Shafts

1. Machine list-whole line:

No.	Item.	Unit.	Qty.
1	manual decoiler	set	1
2	main roll forming machine	set	1
3	plc control box	set	1
4	hydraulic pump	set	1
5	cutting system	pcs	1
6	out put table	pcs	1

2. technical requests:

NO.	Item.	Parameters.
1.	suitable materials	galvanized steel,metal,aluminum
2.	thickness	1-3mm
3.	working speed	8-12m/min
4.	voltage	350v50hz3p

3. detailed description:

main parameters

Item	Parameters
machine body frame	350# steel with grit blasting
column plate thickness	25mm
number of forming steps	16 steps, 2 leveling shafts
roller material	Cr12 steel
shaft material	40Cr
shaft diameter	50mm
transmission style	Gear
main motor	4kw
safety cover	Avaliable
technological process	Forging→Rough turning→Quenching→Grinding →Finish turning →Finish
