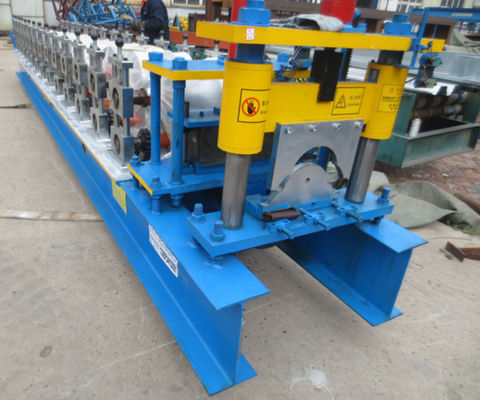

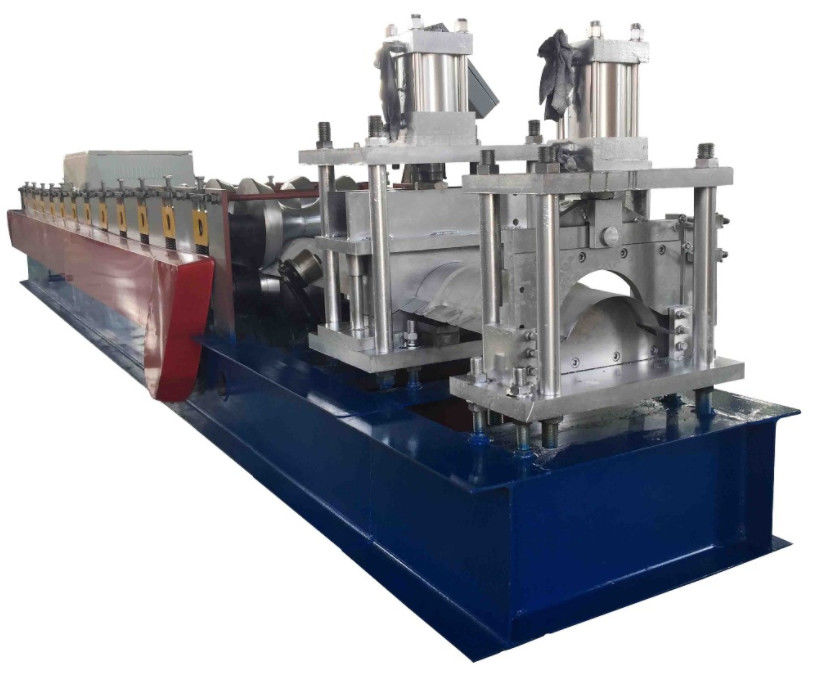

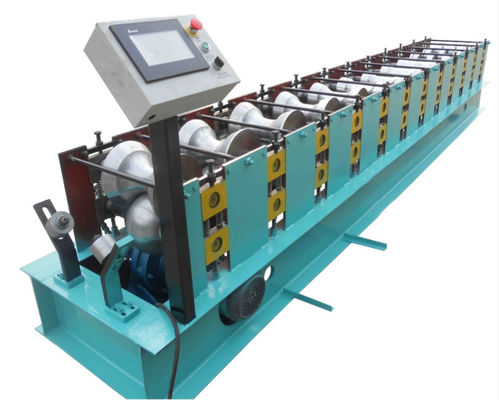

Roof Ridge Cap Roll Forming Machine 15m/min 18 Stations

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Certification:	CE
Model Number:	Ridge cap

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	as customer's request
Delivery Time:	45 work days
Payment Terms:	T/T, L/C
Supply Ability:	30sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Voltage:	380V 50Hz 3phases	Condition:	New
Tile Type:	Colored Steel	Warranty:	1 Year
Thickness:	0.3-0.8mm	Capacity:	12-15m/min
High Light:	15m/min Ridge Cap Roll Forming Machine , CE Ridge Cap Roll Forming Machine , hydraulic metal roof roll forming machine

Technical parameters of fair ridge cap making machine

Model number	metal roof ridge cap roll forming machine
Rolled material	0.3-1.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	as customer's require
Feeding width	as customer's require
Forming steps	9-18 stations
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	70mm
Main motor power	4 kw
Pump power	3 kw
Sprocket chain	1 inch
Drive type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component	1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
