Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T

Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T

  • Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T
  • Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T
  • Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T
Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: Standard export package
Delivery Time: 20-40work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Voltage: 380V 50Hz 3Phases Or As Your Requirment Condition: New
Weight: 2.5T Warranty: 1 Year
Color: Customized Control System: PLC(imported Brand)
High Light:

green Ridge Cap Roll Forming Machine

,

2.5T Ridge Cap Roll Forming Machine

,

4kw roof panel machine

Half Round Ridge Roof Roll Forming Machine Roof Ridge Tile Building Material Making Machine

Roofing ridge forming machine to make ridge cap suitable for steel roofing sheet top. Your ridge can be designed here.There are some popular ridge machines for your reference, stop to cut machine, working speed about 2-4m/min,standard ridge with flat leg, which need to cut the leg according to roofing trapezoidal sheets during installing/special ridge cutted according to roofing trapezoidal sheets, which can easily attached on roofing without futher cut during installing, which improve work efficiency greatly, and make great match to roofing sheets to water proof.





Technical parameters:
1 Name of commodity & specification ridge cap forming machine
2 Main motor power 5.5kw, 3 phase
3 Hydraulic motor power 4kw
4 Hydraulic Pressure 2-4MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 300mm H-Beam
8 Backboard Thickness 14mm
9 Chain Size 20mm
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-0.8mm
13 Roll Station 12
14 Roller Diameter 50mm
15 Roller material 45# steel
16 Cutter material Cr12 , quenched
17 Cr-Plating Size 0.05mm
18 Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set

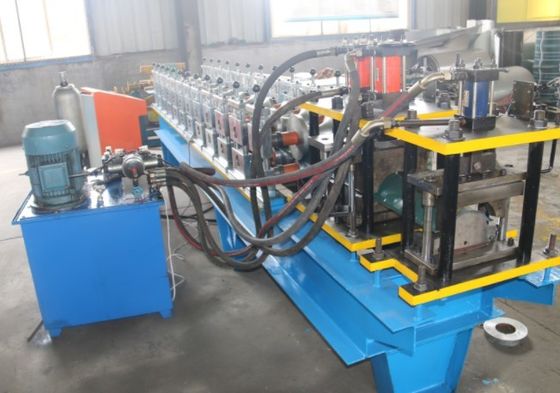

Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T 0

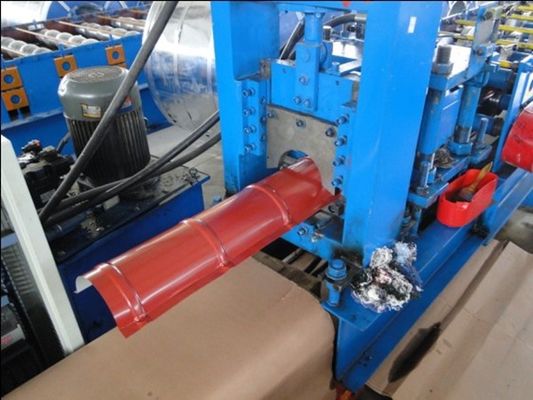

Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T 1

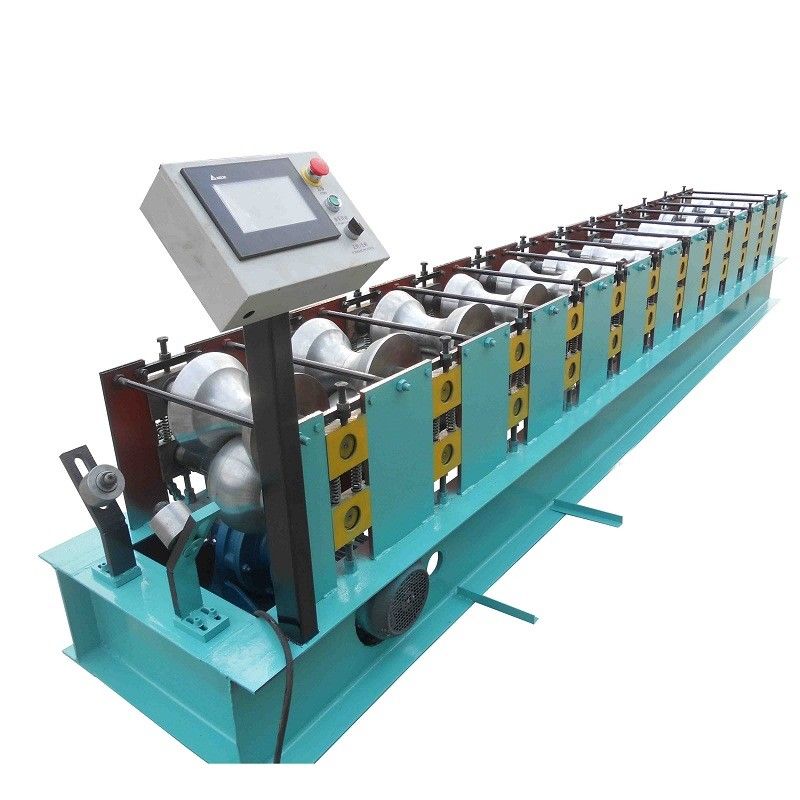

Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T 2
