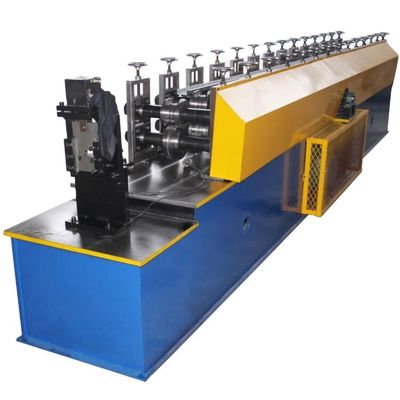

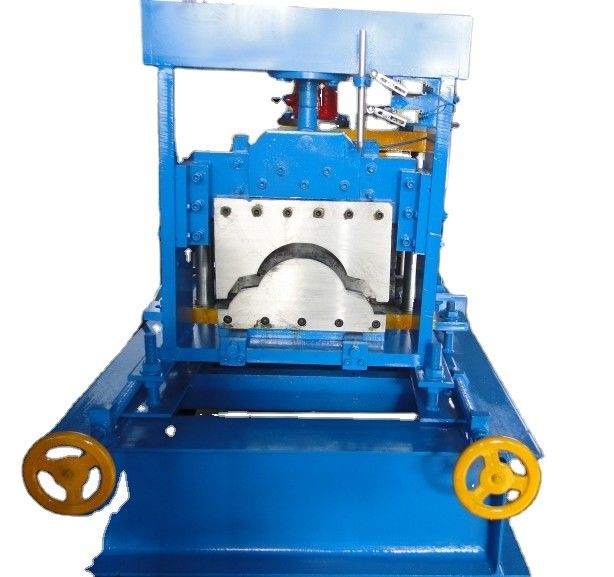

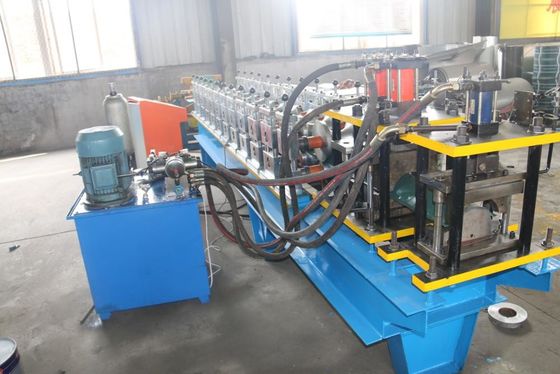

6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile

6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile

6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile
video
6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: Ridge cap
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: as request
Delivery Time: 50 work days
Payment Terms: T/T, L/C
Supply Ability: 25sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380v50/60hz Tile Type: Colored Steel
Warranty: 1 Year Thickness: 0.3-0.7mm
Condition: New After-sales Service Provided: Video Technical Support
High Light:

3KW Roofing Sheet Roll Forming Machine

,

6T Roofing Sheet Roll Forming Machine

,

Ridge metal roof panel machine

6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile



Introduction of Equipment

No Name Unit Qty
1 Manual uncoiler set 1
2 Main machine for roll forming set 1
3 Control system set 1
4 Hydraulic system set 1
5 Simple output fram set 1



Technical Specifications

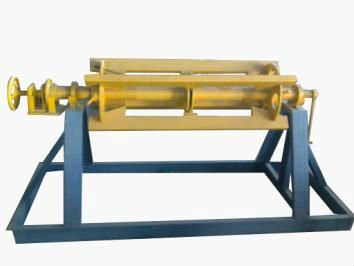

1) manual inner tight decoiler

a. coil inner diameter: 450mm-550mm

b. maximum width of coiling: 1200mm

c. maximum weight of loading: 6000kg



2) main forming machine

a. number of forming steps: 9

b. material of shaft: 45# steel adjustable treatment. outer diameter: 70mm

c. material of roller: high grade 45# steel (plated chrome on surface)

d. main motor power : 3kw

e. forming speed: 8-10m/min

f. stand: 350# steel welding

g. the plating chromium of roller surface: 0.05mm

FX used gutter machines for sale



6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile 1



6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile 2
