8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting

8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting

  • 8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting
  • 8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting
  • 8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting
8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting
Product Details:
Place of Origin: China
Brand Name: Gracias
Certification: CE,ISO
Model Number: Rolling shutter door
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: fit for ocean shipping
Delivery Time: 20-40work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Use: Roller Shutter Door Roll Forming Machine Tile Type: Steel,Colored Glaze Steel
Warranty: 12 Months Control System: Taiwan Delta,PLC
High Light:

8m/min Rolling Shutter Manufacturing Machine

,

6T Rolling Shutter Manufacturing Machine

,

Blue standing seam panel machine

8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting

Product Description

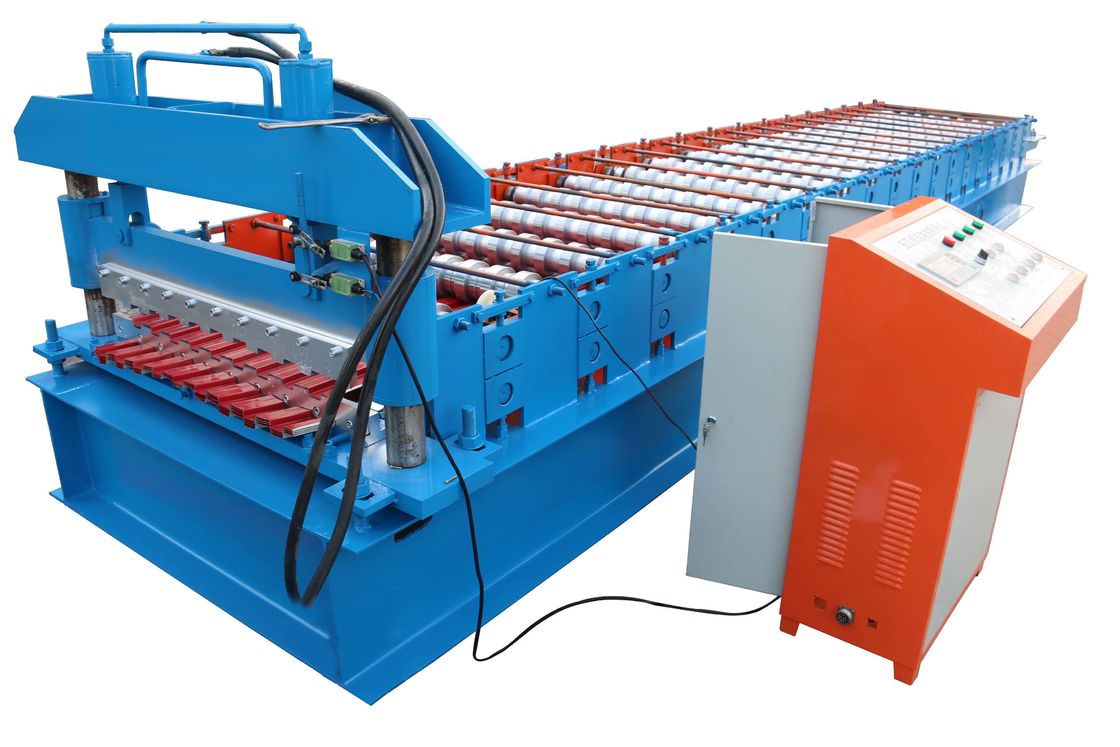

Saudi Arabia style rolling shutter door roll forming machine,with low noise than normal

rolling shutter door machine.The completer door roll forming machine including decoiler,

main forming machine,control box and run out tables .

Features:

  • Lightweight, high impact strength and simple to use.
  • Deep corrugations provide bold aesthetic shadow effects.
  • The strength of design allows longer spanning or greater allowable loads.
  • Various corrugation profiles, including standard, mini, tile effect, box profile, etc.
  • Offer Custom-manufactured service to satisfy your special needs.
  • Offer roof materials in galvanised steel, prepainted galvanised steel, also available in galvalume steel and prepainted galvalume steel.
  • Offer roof accessories to help you install roof or wall panel, such as roof fasteners, roof panel machine and roof cutting tool.

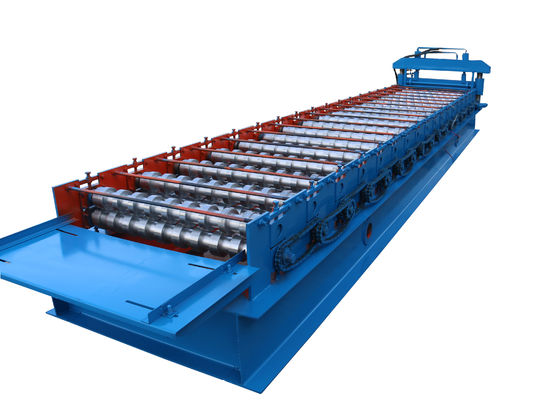

Main forming machine



Raw material
Processing material Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm) 0.3-1.0mm or as your customized
Material of rollers High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts 45# steel
Diameter of shafts 70mm or as your customized
Forming speed 8-12 m/min or as your customized
Under frame 350 H-beam
Sidewall 16mm
Connect bar 25mm, zinc plated
Forming steps 22 or as your customized
Control system Delta PLC and Inverter
Suitable power 380V, 50 Hz, 3 phase or according to your need
Drive mode Chain and sprocket, chain size 1 inch
Main motor 3-5.5kw
Hydraulic pump station 3-5.5kw

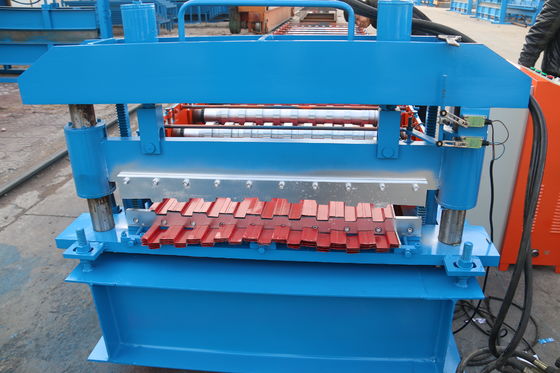

Cutting model Hydraulic profile cutting
Dimension of the machine 7.5m-11m×1.5mm×1.2m
Weight of the machine 3.5 ton -6 ton



8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting 0

Saudi Arabia Style Rolling Shutter Door Roll Forming Machine8m/min 6T Rolling Shutter Manufacturing Machine Hydraulic Cutting 2
