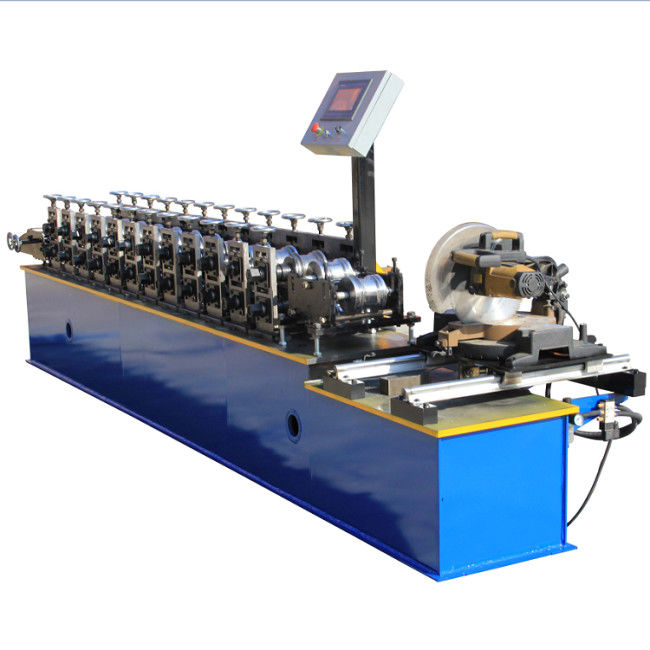

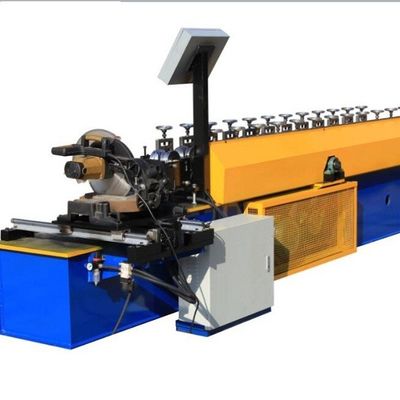

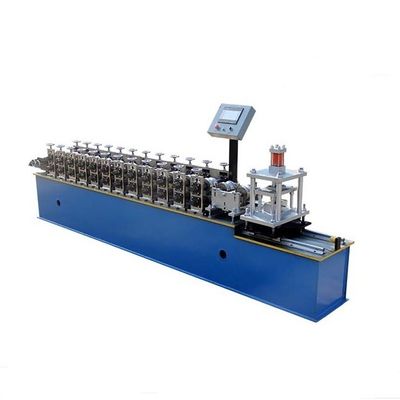

3.2T Steel Shutter Door Roll Forming Machine 5.5KW 12 Stations

3.2T Steel Shutter Door Roll Forming Machine 5.5KW 12 Stations

3.2T Steel Shutter Door Roll Forming Machine 5.5KW 12 Stations
video
3.2T Steel Shutter Door Roll Forming Machine 5.5KW 12 Stations
Product Details:
Place of Origin: China
Brand Name: Gracias
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: As discussion
Packaging Details: as request
Delivery Time: 45 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 35sets per month
Contact Now
All Products
Color Steel Roll Forming Machine (17)
Keel Roll Forming Machine (10)
CZ Purlin Roll Forming Machine (28)
Steel Door Embossing Machine (10)
Door Frame Roll Forming Machine (8)
Shutter Door Roll Forming Machine (14)
Sandwich Panel Roll Forming Machine (5)
Storage Rack Roll Forming Machine (9)
Downspout Pipe Roll Forming Machine (8)
Ridge Cap Roll Forming Machine (9)
Stone Coated Roof Tile Machine (5)
Panel Roll Forming Machine (10)
Highway Guardrail Roll Forming Machine (9)
Cable Tray Roll Forming Machine (7)
Food Processing Machinery (116)
Filling Packing Machine (139)
Wall Panel Extruder (10)
Feed Processing Equipment (27)
Testing instrument (6)
Detailed Product Description
Voltage: 380V 50Hz 3phases Condition: New
Weight: 3.2T Use: Shutter Door
Warranty: One Year Control System: PLC Control System(brand As Requirement)
High Light:

3.2T Shutter Door Roll Forming Machine

,

Cr12 Shutter Door Roll Forming Machine

,

5.5kw steel stud making machine

3.2T Steel Shutter Door Roll Forming Machine 12 Stations



Machine composition

Name SET Use TO
3T Manual decoiler 1 set Loading the coil
Main forming machine and cutter 1 set forming the shape.Cutting the length as request.
PLC control system 1set 1.Language as request
2.Text and touch screen for chose
3.Brand PLC:Panasonic /Delta /Mitsubish
Oil pump 1 set Make coolling as request
Product stand 1 set Stand finishing product
Remark All equipment can order as customer’s request


 Main parameters

Effective width 98mm
Feeding width 100mm
Forming steps 12 stations
Roller Cr12 hard chrome plating within 0.05mm
Diameter of shaft 60mm
Main motor power 5.5 kw
Pump power 4 kw
Sprocket chain 1 inch
Drive type by Gears
Cutting Blade Cr12, heat treatment 60-62°C
Frequency Converter It has the advantage of slowing down before cutting,
  to ensure the length accuracy
  (±1mm, far better than industrial standard ±3mm).
component 1 set of manual decoiler,1 set of main roll forming machine,
  1 set of computer control cabinet,1 set of hydraulic System,
  1 set of cutting mechanism,1 set of counter,1 set of output table



3.2T Steel Shutter Door Roll Forming Machine 5.5KW 12 Stations 0

3.2T Steel Shutter Door Roll Forming Machine 5.5KW 12 Stations 1
