MCBM Wall Span Roll Forming Machine 1.6mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	ZX-MCBM

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for ocean shipping
Delivery Time:	40-60 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	45sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Decoiler:	Vertical Decoiler	Condition:	New
Warranty:	1 Year	Use:	Roof
Control System:	PLC	PLC Type:	Siemens
Material Of Roller Shafts:	45#steel	Step Of Rollers:	13 Steps
High Light:	Wall Span Roll Forming Machine , MCBM wall span roll forming machine , 1.6mm wall span roll forming machine

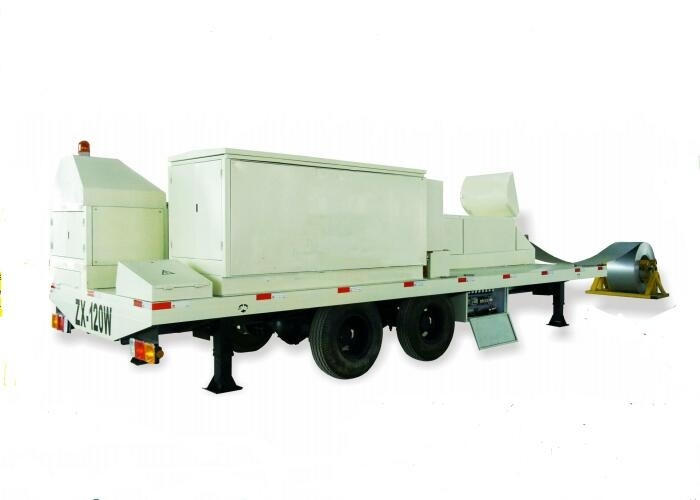

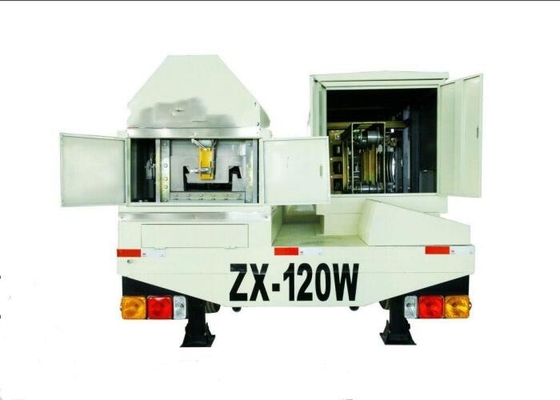

VERTICAL TYPE LARGE SPAN ROLL FORMING MACHINE

Product intruduction:

MCBM wall span roll forming machine with the professional software desigh

input PLC system, realize one machine ten kinds of bending model, can meet

the demand of customers a variety of architectrual form. It is not limited to use

the enviroment space utilization, can make the engineering maximun save material,

more suitable for the civil house.

Technical parameters:

MCBM Wall Span Roll Forming Machine 1.6mm Thickness 0

MAIN TYPE	FEEDING WIDTH	EFFECTIVE WIDTH	DEPTH OF THE GROOVE	THICKNESS	PROPER SPAN	USAGE RATE
ZX-MCBM-120	600mm	305mm	109mm	0.6-1.6mm	4m-26m	51%
ZX-MCBM-160	914mm	400mm	210mm	0.6-1.6mm	10m-40m	43.8%
ZX-MCBM-240	914mm	610mm	203mm	0.6-1.6mm	7m-38m	66.7%
ZX-MCBM-240U	914mm	610mm	108mm	0.6-1.6mm	2m-20m	66.7%
ZX-MCBM-270	1000mm	680mm	223mm	0.6-1.6mm	10m-36m	68%
ZX-MCBM-320	1250mm	800mm	320mm	0.6-1.6mm	15m-42m	64%
