Alloy Panel Roll Forming Machine 1.2mm Siemens Hydraulic Sheet

Product Details:

Place of Origin:	China
Brand Name:	Gracias
Model Number:	ZX-N65,ZX-JN65,ZX-AFJ65

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	As discussion
Packaging Details:	fit for ocean shipping
Delivery Time:	20-60 work days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	45sets per month

Contact Now

All Products

Color Steel Roll Forming Machine (17)

Keel Roll Forming Machine (10)

CZ Purlin Roll Forming Machine (28)

Steel Door Embossing Machine (10)

Door Frame Roll Forming Machine (8)

Shutter Door Roll Forming Machine (14)

Sandwich Panel Roll Forming Machine (5)

Storage Rack Roll Forming Machine (9)

Downspout Pipe Roll Forming Machine (8)

Ridge Cap Roll Forming Machine (9)

Stone Coated Roof Tile Machine (5)

Panel Roll Forming Machine (10)

Highway Guardrail Roll Forming Machine (9)

Cable Tray Roll Forming Machine (7)

Food Processing Machinery (116)

Filling Packing Machine (139)

Wall Panel Extruder (10)

Feed Processing Equipment (27)

Testing instrument (6)

Detailed Product Description

Decoiler:	Vertical Decoiler	Condition:	New
Warranty:	1 Year	Use:	Roof Panel For Warehouses, Houses, Hangars Etc.
Control System:	PLC	PLC Type:	Siemens
Material Of Roller Shafts:	45#steel	Step Of Rollers:	11 Steps
High Light:	Alloy Panel Roll Forming Machine Hydraulic , Siemens Panel Roll Forming Machine , 1.2mm Panel Roll Forming Machine

LARGE LONG K SPAN ROLL FORMING MACHINE

Product intruduction:

This machine is a multi-usage machine, it can produce rectangular plate,

sector plate, Double female buckle rectangular plate, Double female buckle

sector plate, Double male touckle rectangular plate, Double male buckle sector

plate, Retractable hydraulic loading bay, Quadrilateral carrier frame can automatically

lift, save space. Machine can be loaded into container within 6 m, do not take up the

construction space and saving the cost of transportation.PLC industrial computer control

can realize automatic production and saving labor.

Technical parameters:

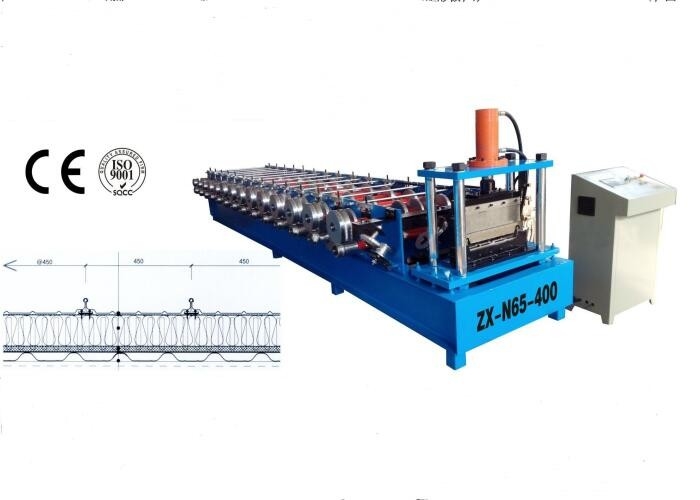

Alloy Panel Roll Forming Machine 1.2mm Siemens Hydraulic Sheet 0

MAIN TYPE	FEEDING WIDTH	EFFECTIVE WIDTH	DEPTH OF THE GROOVE	THICKNESS	POSITIVE BENDING CURVATURE RADIUS	INVERSE BENDING CURVATURE RADIUS
ZX-N65-350	528mm	350mm	65mm	0.7-1.2mm	8.0m	25m
ZX-AFJ65-350	525mm	350mm	65mm	0.7-1.2mm	8.0m	25m
ZX-JN65-400	575mm	400mm	65mm	0.7-1.2mm	8.0m	20m
ZX-AF65-400	578mm	400mm	65mm	0.7-1.2mm	8.0m	20m
ZX-N65-450	628mm	450mm	65mm	0.7-1.2mm	8.0m	15m
ZX-AFJ65-350	625mm	450mm	65mm	0.7-1.2mm	8.0m	15m
